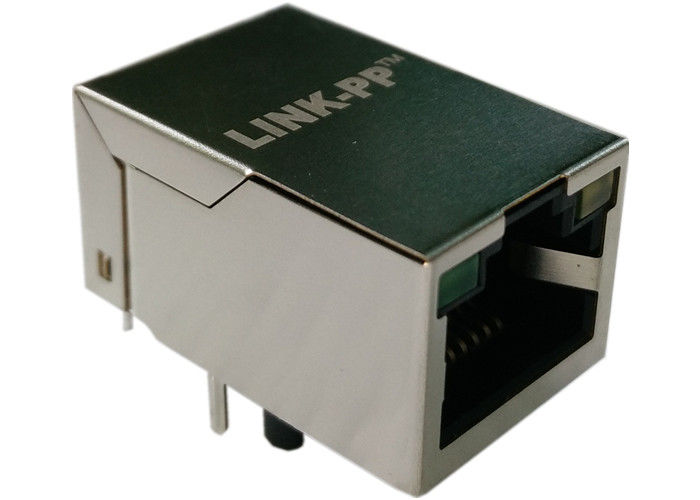

7499010121A Magnetic RJ45 Jack 10/100Base-TX Tab-up With LEDs

Name: 7499010121A Magnetic RJ45 Jack 10/100Base-TX Tab-up With LEDs
Brand: LINK-PP
SKU: 7499010121A
Rating: 4.7 (146 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 7499010121A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 magnetic jack


PN:	7499010121A	Made In China:	SM-LPJ1014BGNL
Interface:	10/100Mbps	RoHS Compliant:	Yes
LED Indicator:	Optional	Samples:	Available

PN:	7499010121A
Made In China:	SM-LPJ1014BGNL
Interface:	10/100Mbps
RoHS Compliant:	Yes
LED Indicator:	Optional
Samples:	Available

7499010121A Magnetic RJ45 Jack 10/100Base-TX Tab-up With LEDs

7499010121A Magnetic RJ45 Jack 10/100Base-TX LPJ1014BGNL Tab-up With LEDs

TEST NOTES(25±5℃)

1.TR:(100KHz,100mV);
TX=1CT∶1CT ±3% RX=1CT∶1CT ±3%P2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
-30dB MIN @1MHz TO 50MHz
-20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃～70℃.

NOTES:

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.
