LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer

LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer
LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer

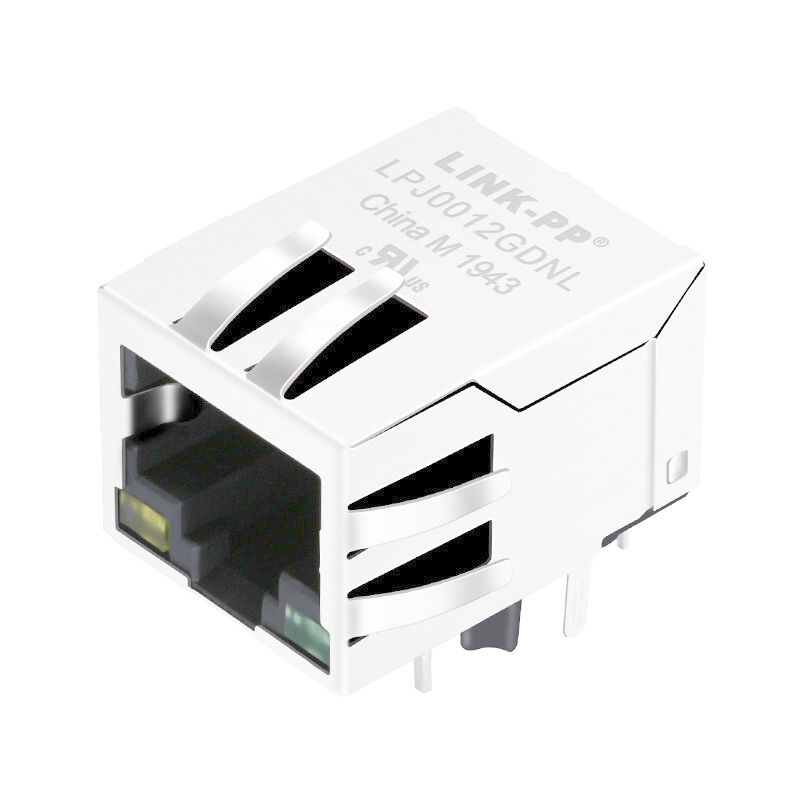

Large Image :  LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer

Product Details:

Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 7499011121A

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock or 3-4 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 4600K.PCS/Month
Detailed Product Description
Item#: 7499011121A Type: RJ45 10/100Mbps
Orientation: Down RoHS Compliant: Yes
LED Indicator: Flexible Samples: Free Available
High Light:

rj45 with magnetics

,

rj45 magnetic jack

LPJ0012GDNL RJ45 Magnetic Jack Cross 7499011121A Built in 10/100 Transformer
7499011121A
1.10/100 Base-T
2.1X1 Tab-Down
3.Through hole RJ45 modular jack
4.21.3mm length RJ45 Magjack
Description:
Single Port RJ45 Modules with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJ0012GDNL
WE Part Number 7499011121 / 7499011121A / MIC24011-0101
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST

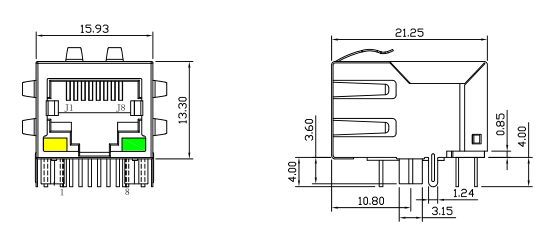

Package Height (Inches) 0.528
Package Height (mm) 13.40
Package Length (Inches) 0839
Package Length (mm) 21.30
Package Width (Inches) 0.626
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
1X1  RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85



Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
