PCB Connector J0026D21BNL Hipot 1500Vrms RJ45 10/100BT Magnetic Jack

Name: PCB Connector J0026D21BNL Hipot 1500Vrms RJ45 10/100BT Magnetic Jack
Brand: LINK-PP
SKU: J0026D21BNL
Rating: 4.6 (150 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: J0026D21BNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 with magnetics, rj45 magnetic jack


Product Name:	J0026D21BNL	Made In China:	SM-LPJ0026ABNL
Interface:	10/100Mbps	RoHS Compliant:	Yes
LED Indicator:	Flexible	Samples:	Free Available

Product Name:	J0026D21BNL
Made In China:	SM-LPJ0026ABNL
Interface:	10/100Mbps
RoHS Compliant:	Yes
LED Indicator:	Flexible
Samples:	Free Available

PCB Connector J0026D21BNL Hipot 1500Vrms RJ45 10/100BT Magnetic Jack

Quick Details

1.10/100 Base-T

2.1X1 Tab-down

3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

J0026D21BNL ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(%%P2%):
TX=1CT:1 RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃.

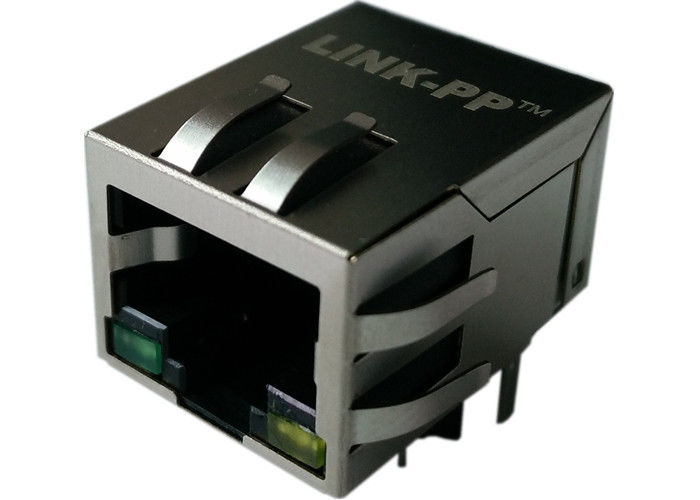

PCB Connector J0026D21BNL Hipot 1500Vrms RJ45 10/100BT Magnetic Jack 0
