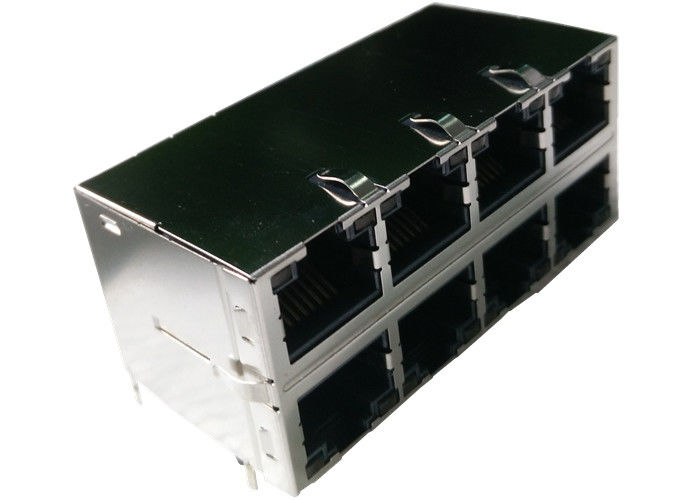

Horizental Entry R45 With LED 2 X 4 Port 76D0-5400

Name: Horizental Entry R45 With LED 2 X 4 Port 76D0-5400
Brand: LINK-PP
SKU: LPJE108XAGNL
Price: 0.11 USD
Availability: InStock
Rating: 4.6 (112 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LPJE108XAGNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, rj45 usb connector combo


Product Name:	Stacked RJ45	Color:	Silver
Shield Material:	Copper Alloy	Application:	HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:	Side Entry (Right Angle)	Pin:	2P 4P 6P 8P 10P,custom

Product Name:	Stacked RJ45
Color:	Silver
Shield Material:	Copper Alloy
Application:	HUB, PC Card, Switch, Router Etc
PCB Mounting Orientation:	Side Entry (Right Angle)
Pin:	2P 4P 6P 8P 10P,custom

Horizental Entry R45 With LED 2 X 4 Port 76D0-5400

LPJE108XAGNL Cross Horizental Entry R45 With LED 2 X 4 Port 76D0-5400

1.2X4 Port Stacked RJ45 No Magnetics Inside

2. RJ45 PCB connector LPJE108XAGNL pin to Pin 76D0-5400

3.HUB, PC card, Switch RJ45 modular jack

4.SDH, PDH, IP Phone RJ45 jack LPJE108-0AGNL / LPJE1082AGNL

Description:

2X4 port Stacked RJ45 with/without leds,

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 2 x 4

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
