Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJ0011HBNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
LPJ0011HBNL |
Part No: |
LPJ0011HBNL |

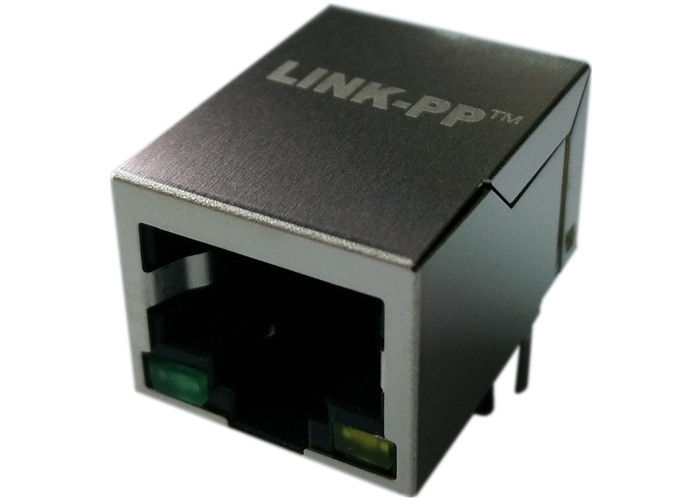

PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Date I/O: |
10/100Base-TX |
Samples: |
Available |
Specification: |
LPJ0011HBNL |
Part No: |
LPJ0011HBNL |
PCB Mounting Orientation: |
Side Entry (Right Angle) |
Jack Type: |
RJ45 |
Date I/O: |
10/100Base-TX |
Samples: |
Available |
| NOTES: | |
||
| 1.Designed to support application,such as SOHO(ADSL | |||
| modems),LAN-on-Motherboard(LOM),hub and Switches. | |||
| 2.Meets IEEE 802.3 specification | |||
| 3.Connector Materials: | |||
| Housing: Thermoplastic PBT+30%G.F UL94V-0 | |||
| Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm | |||
| Pins: Brass C2680R-H Thickness=0.35mm | |||
| Shield: SUS 201-1/2H Thickness=0.2mm | |||
| Contact plating: Gold 6 micro-inches min.In contact area. | |||
| 4.Wave solder tip temperature: 265℃ Max, 5 Sec Max | |||
| 5.UL Certification: File Number E484635 | |||
| Emitting Color | λp(nm) | VF@IF=20mA | IR @VR=5V |
| Green | 570 | 1.8~2.6V | 10μA max |
| Yellow | 585 | 1.8~2.6V | 10μA max |
