Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: SGS, UL,CE, ISO9001:2008,REACH
Model Number: J8064D648ANL
Document: LPJ46204AENL.pdf
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $1.1-$5.5
Packaging Details: Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
J8064D648ANL |
Cross P/N: |
LPJ46204AENL |
Data Rate: |
100BASE-TX |
Configuration: |
1x4 Port, Tab-Down |
Mounting Style: |
Through-Hole |
LEDs: |
Green/Yellow (Left/Right) |
Isolation: |
2250 VDC |
Operating Temperature: |
0°C To +70°C |
RoHS: |
Compliant |
Free Samples: |
Available |
Part Number: |
J8064D648ANL |
Cross P/N: |
LPJ46204AENL |
Data Rate: |
100BASE-TX |
Configuration: |
1x4 Port, Tab-Down |
Mounting Style: |
Through-Hole |
LEDs: |
Green/Yellow (Left/Right) |
Isolation: |
2250 VDC |
Operating Temperature: |
0°C To +70°C |
RoHS: |
Compliant |
Free Samples: |
Available |
J8064D648ANL is a 100BASE-TX RJ45 1x4 tab-down integrated magnetics connector with G/Y LEDs, 2250 VDC isolation, 1CT:1CT turns ratio, and through-hole mounting for LAN, SOHO, hub, and switch applications.

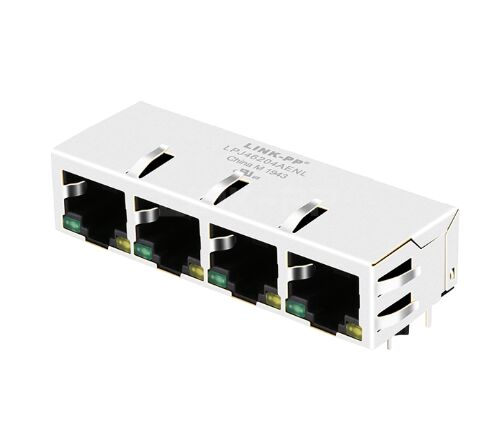

The J8064D648ANL Integrated Magnetics Connector (ICM) is a high-performance RJ45 1x4, tab-down Ethernet connector designed for 100BASE-TX Fast Ethernet applications. Featuring integrated magnetics, green/yellow LEDs, and a through-hole mounting design, this connector is engineered to deliver stable signal transmission, reliable isolation, and simplified PCB integration.
This model is well suited for SOHO devices, ADSL modems, LAN-on-Motherboard (LOM) solutions, hubs, and switches where compact design, electrical performance, and dependable Ethernet connectivity are essential.
If you are looking for a 100 Mbps RJ45 integrated magnetics jack with strong electrical characteristics and broad application coverage, the J8064D648ANL is a practical and efficient choice.
| Parameter | Specification |
| Turns Ratio (TX/RX) | 1CT:1CT / 1CT:1CT |
| Data Rate | 100BASE-TX |
| Insertion Loss | -1.0 dB TYP (1-100 MHz) |
| Return Loss (100Ω ±15Ω) | -20 dB (1-10 MHz) / -16 dB (30 MHz) / -12 dB (60-80 MHz) |
| Crosstalk | -40 dB (1-30 MHz) / -35 dB (30-60 MHz) / -30 dB (60-100 MHz) |
| Common Mode Rejection | -30 dB (1-50 MHz) / -20 dB (50-130 MHz) |
| Hipot (Isolation) |
2250 VDC (50/60 Hz, 1 minute |
The J8064D648ANL is engineered for high-reliability networking hardware, including:
J8064D648ANL 1x4 RJ45 MagJack. Features 100 Base-TX speed, 2250VDC isolation, and G/Y LEDs. Optimized for switches, hubs, and LOM applications.
J8064D648ANL is a 100BASE-TX integrated magnetics RJ45 connector used in Fast Ethernet applications such as modems, switches, hubs, and LAN-on-Motherboard designs.
Yes. It is an Integrated Magnetics Connector (ICM), which combines the RJ45 connector and magnetics into one component.
It has a 1x4 port configuration.
The connector provides 2250 VDC minimum isolation voltage.
Yes, it is RoHS compliant.
The operating temperature range is 0°C to +70°C.
