Network 2x4 Port Stacked RJ45 Magjack Shielded , JC0-0131NL Through Hole

Name: Network 2x4 Port Stacked RJ45 Magjack Shielded , JC0-0131NL Through Hole
Brand: LINK-PP
SKU: JC0-0131NL
Price: 0.11 USD
Availability: InStock
Rating: 4.9 (106 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: JC0-0131NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                modular jacks rj45, rj45 usb connector combo


Product Name:	Stacked RJ45	Made In China:	SM-LPJG47547CNL
Shield Material:	Copper Alloy	Application:	Switch, Router ,PDH, IP Phone, XDSL Modem Etc
PCB Mounting Orientation:	Side Entry (Right Angle)	Samples:	Available

Product Name:	Stacked RJ45
Made In China:	SM-LPJG47547CNL
Shield Material:	Copper Alloy
Application:	Switch, Router ,PDH, IP Phone, XDSL Modem Etc
PCB Mounting Orientation:	Side Entry (Right Angle)
Samples:	Available

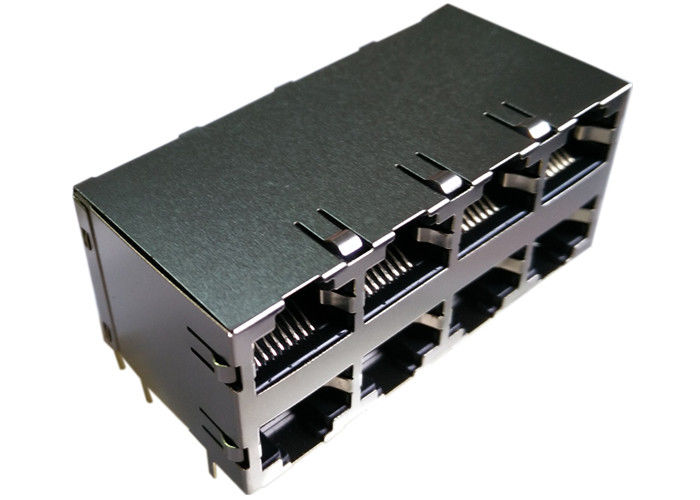

Network 2x4 Port Stacked RJ45 Magjack Shielded , JC0-0131NL Through Hole

Quick Details

1.10/100 Base-T

2.2X4 Port

3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

Electrical Specifications @ 25℃
1.Transmitter filter & Receiver filter
Type:Balance low pass 100Ω impedance
Insertion Loss:
1～65MHz:-1.0dB MAX
Return Loss:
1～10MHz:-20dB TYP.load 100Ω%%P15Ω
30MHz:-16dB TYP.load 100Ω%%P15Ω
60～80MHz:-12dB TYP.load 100Ω%%P15Ω
2.Inductance (@ 100KHz,0.1V,8mA DC BIAS):
350uH MIN
3.Crosstalk:
1～10MHz:-40dB MIN
32～60MHz:-35dB MIN
60～100MHz:-30dB MIN
4.Common Mode Rejection:
1～50MHz:-30dB TYP
50～130MHz:-20dB TYP
5.Hipot: 1500Vrms MIN @60Hz 1 MIN
6.Operating Temperature: 0℃～+70℃.

Network 2x4 Port Stacked RJ45 Magjack Shielded , JC0-0131NL Through Hole 1
