Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: JK0-0133NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Specifications: |
JK0-0133NL |
P/N: |
LPJK1045CNL |
Ethernet: |
1x 10/100/1000Base |
Mechanical: |
33.02x16.60x13.50mm |
Mounting: |
THT |
Samples: |
Free |
Specifications: |
JK0-0133NL |
P/N: |
LPJK1045CNL |
Ethernet: |
1x 10/100/1000Base |
Mechanical: |
33.02x16.60x13.50mm |
Mounting: |
THT |
Samples: |
Free |

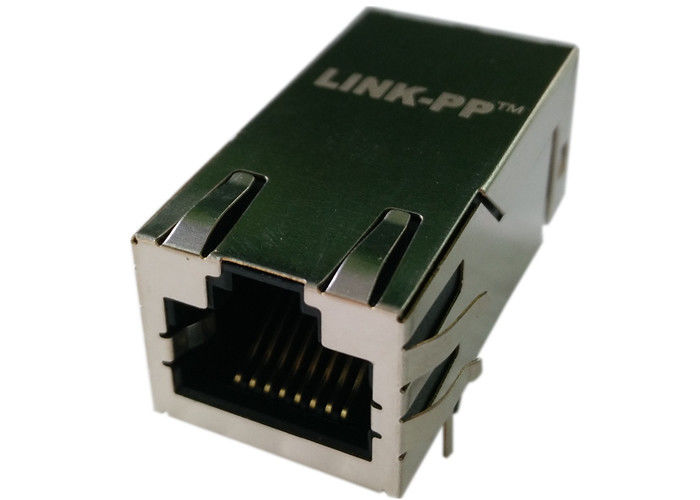

4.33 mm length RJ45 Magjack
| Single Port RJ 45 Connector Cat5 with 1000 Base-T Integrated Magnetics & PoE,Without LED,Tab Up,RoHS | |
| LINK-PP Part Number | LPJK1045CNL |
| Pulse Part Number | JK0-0133NL |
| Application-Lan | ETHERNET(PoE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | WITHOUT LEDS |
| Latch | TAB UP |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (Inches) | 0.531 |
| Package Height (mm) | 13.50 |
| Package Length (Inches) | 1.30 |
| Package Length (mm) | 33.02 |
| Package Width (Inches) | 0.654 |
| Package Width (mm) | 16.60 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | 0 TO 70℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Description
10/100/1000 Base-TX RJ45 single port with integrated magnetics – Designed for most leading PHY
manufacturers with the addition of Power over Ethernet, according to IEEE 802.3af
