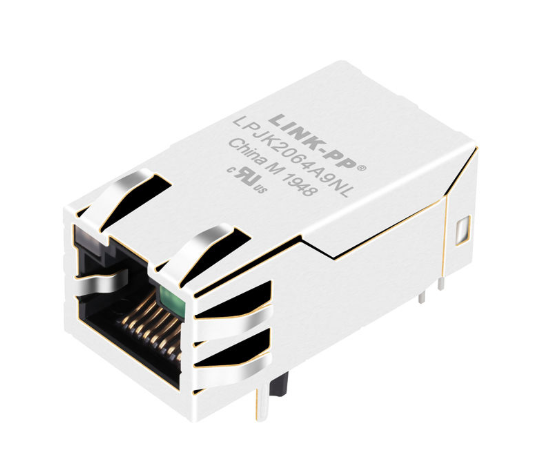

Name: LPJK2064A9NL | JK0-0177NL Networking RJ45 Magnetic Jack 1000Base-T
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: JK0-0177NL
Price: 14.05 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JK0-0177NL

Document: LPJK2064A9NL.pdf

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: Supportive

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: In Stock Ship Within 3 Days

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4600K.PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                    JK0-0177NL, RJ45 Magnetic Jack, PoE+ PusleJack


Pinout:	JK0-0177NL	PN:	LPJK2064A9NL
Data Rate:	1000BASE-T	RoHS Compliant:	Yes
No. Of Channels/Ports:	1x1	Free Samples:	Available
Mounting Style:	Through-Hole	Temperature Range:	0/+70°C
Isolation Voltage:	2250 VDC	Turns Ratio:	1CT:1CT

Pinout:	JK0-0177NL
PN:	LPJK2064A9NL
Data Rate:	1000BASE-T
RoHS Compliant:	Yes
No. Of Channels/Ports:	1x1
Free Samples:	Available
Mounting Style:	Through-Hole
Temperature Range:	0/+70°C
Isolation Voltage:	2250 VDC
Turns Ratio:	1CT:1CT

LPJK2064A9NL | JK0-0177NL Networking RJ45 Magnetic Jack 1000Base-T

LPJK2064A9NL | JK0-0177NL Networking RJ45 Magnetic Jack 1000Base-T

1.10/100/1000 Base-T JK0-0177NL

2.1X1 Tab-up LPJK2064A9NL

3.Through hole RJ45 modular jack

4.33mm length RJ45 Magjack

1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector

Description:

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3af/at

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
