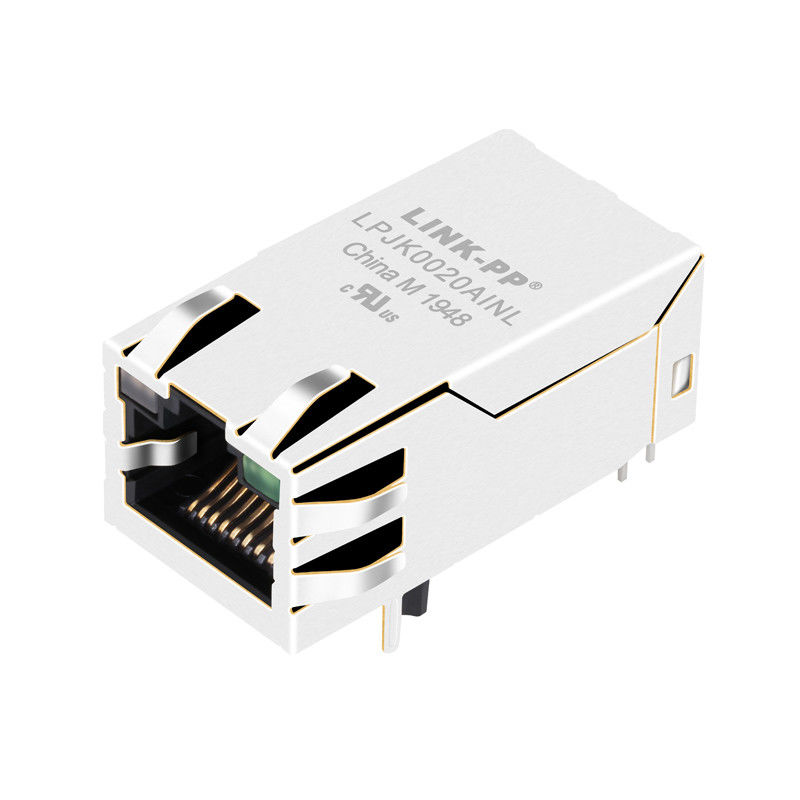

JK0-0020NL | LPJK0020AINL RJ45 Modular Jack ESD / Lightning protector

Name: JK0-0020NL | LPJK0020AINL RJ45 Modular Jack ESD / Lightning protector
Brand: LINK-PP
SKU: JK0-0020NL
Price: 0.05 USD
Availability: InStock
Rating: 4.8 (156 reviews)

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: JK0-0020NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                    rj-45 ethernet jack, modular jacks rj45


Technical:	JK0-0020NL	P/N:	LPJK0020AINL
Ethernet:	100Base-T POE	Mounting:	THT R/A

Technical:	JK0-0020NL
P/N:	LPJK0020AINL
Ethernet:	100Base-T POE
Mounting:	THT R/A

JK0-0020NL | LPJK0020AINL RJ45 Modular Jack ESD / Lightning protector

JK0-0020NL | LPJK0020AINL RJ45 Modular Jack ESD / Lightning protector

1.10/100 Base-T Power Rj45 with ESD / Lightning protector LPJK0020AINL

2.1X1 Tab-up Equivalent to JK0-0020NL

3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

Description:
10/100 Base-TX RJ45 single port with LEDs and integrated magnetics – Designed for most leading PHY
manufacturers with the addition of Power Feeding over the signal pairs according to IEEE 802.3af

1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3af

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

2600 staff,

100% test

Flexible delivery time
