Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE101BHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package: Carton size 32*30*31cm , G.W/carton 8.5kg , Qty/carton 1200pcs , SPQ 50pcs
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month
Part Number:: |
LPJE101BHNL |
OEM & ODM:: |
LINK-PP |
LED Option: |
Green/Yellow |
Samples:: |
Free Available |
File:: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle:: |
More Than 20Years |
Part Number:: |
LPJE101BHNL |
OEM & ODM:: |
LINK-PP |
LED Option: |
Green/Yellow |
Samples:: |
Free Available |
File:: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle:: |
More Than 20Years |
The LPJE101BHNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Intercom,Industrial PC, router and Switch.
| LINK-PP Part Number | LPJE101BHNL | |
| Application-Lan | ETHERNET(NoN PoE) | |
| Bst Circuit | YES | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" | |
| Temperature | -40 TO + 85℃ | |
| Diodes | NO DIODES | |
| LED Option | Green/Yellow | |
| Shielding | Shielded, EMI Finger | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Latch | TAB UP | |
| Number of Ports | 1X1 | |
| PCB | FR4 | |
| PCB Mount Angle | SIDE ENTRY | |
| PCB Retaining Post | T POST | |
| Package Height (Inches) | 0.516 | |
| Package Height (mm) | 13.10 | |
| Package Length (Inches) | 0.640 | |
| Package Length (mm) | 16.25 | |
| Package Width (Inches) | 0.620 | |
| Package Width (mm) | 15.75 | |
| Pin Type | THT SOLDER | |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION | |
| Turns Ratio RX | 1CT:1CT | |
| Turns Ratio TX | 1CT:1CT |

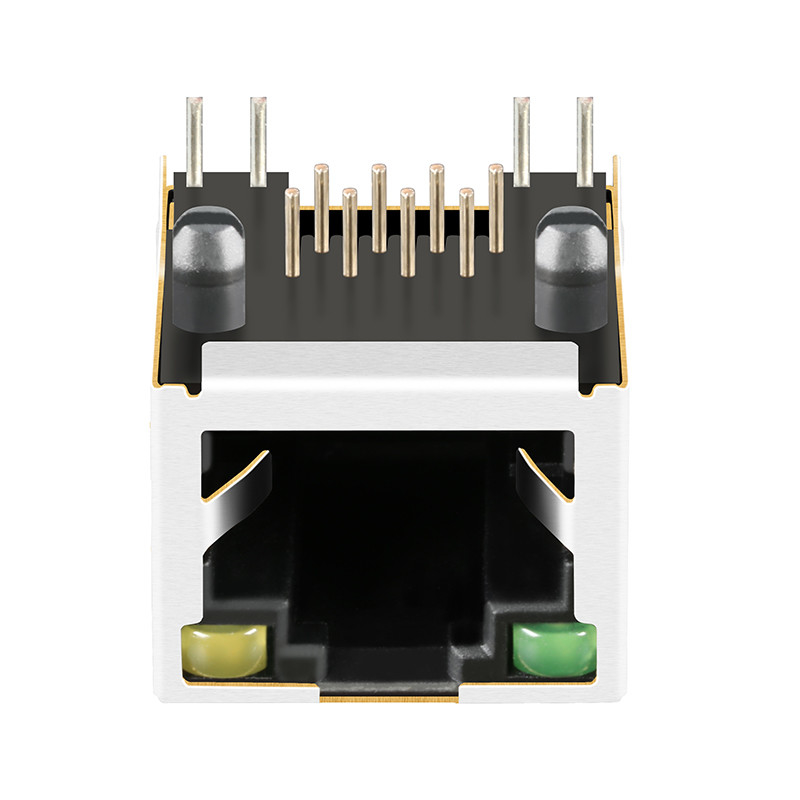

Without Magnetics LPJE101BHNL Tab Up Green/Yellow LED Single Port Rj45 Pcb Mount Jack:
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
Delivery Time:
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 9 days
- Testing & Packaging Time: 3 days
- Total Delivery Time: 15 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
