Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJE102BDNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: Tray Package: Carton size 32*30*31cm , G.W/carton 8.5kg , Qty/carton 1200pcs , SPQ 50pcs
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 6000K/month
Part Number:: |
LPJE102BDNL |
OEM & ODM:: |
LINK-PP |
LED Option: |
Yellow/Green |
Samples:: |
Free Available |
File:: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle:: |
More Than 20Years |
Part Number:: |
LPJE102BDNL |
OEM & ODM:: |
LINK-PP |
LED Option: |
Yellow/Green |
Samples:: |
Free Available |
File:: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle:: |
More Than 20Years |
The LPJE102BDNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Entrance Guard System,SMPS , router and Switch.
| LINK-PP Part Number: | LPJE102BDNL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | - |
| Number of Ports | 1x2 Port | Speed | - |
| Latch | Tab Down | Cores per Port | - |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Yellow/Green Leds |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.539/13.70 | Package Length (Inches/mm) | 0.837/21.27 |
| Package Width (Inches/mm) | 1.00/25.40 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |

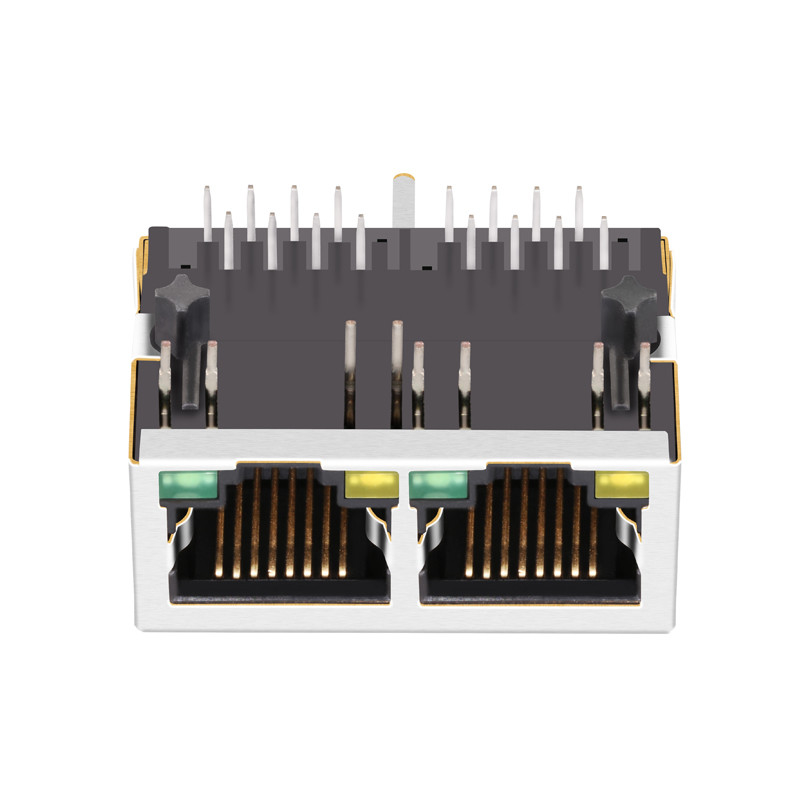

LINKPP LPJE102BDNL Tab Down 1X2 RJ45 Multi Port Jack Product display:
LINK-PP
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 6000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 2-3 Weeks if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight..
Q: What is your terms of payment ?
A: TT/LC/DP/DA/Paypal/Western Union/MoneyGram
