Model Number: LPJG17561AHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $3.7-$18
Packaging Details: Tray
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
LPJG17561AHNL |
Series: |
2×1 Integrated RJ45 Jack |
Application: |
Industry Switch, Router ,Gateway... |
Turns Ratio: |
PRI:SEC = 1CT : 1CT ±2% |
Open Circuit Inductance (OCL): |
350 μH MIN |
Insertion Loss: |
1 – 100 MHz: -1.0 DB MAX |
Common Mode Rejection Ratio: |
1 – 100 MHz: -30 DB MIN |
Isolation: |
1500Vrms |
Operating Temperature Range: |
-40°C To +85°C |
LED Indicators: |
Green / Yellow |
PN: |
LPJG17561AHNL |
Series: |
2×1 Integrated RJ45 Jack |
Application: |
Industry Switch, Router ,Gateway... |
Turns Ratio: |
PRI:SEC = 1CT : 1CT ±2% |
Open Circuit Inductance (OCL): |
350 μH MIN |
Insertion Loss: |
1 – 100 MHz: -1.0 DB MAX |
Common Mode Rejection Ratio: |
1 – 100 MHz: -30 DB MIN |
Isolation: |
1500Vrms |
Operating Temperature Range: |
-40°C To +85°C |
LED Indicators: |
Green / Yellow |

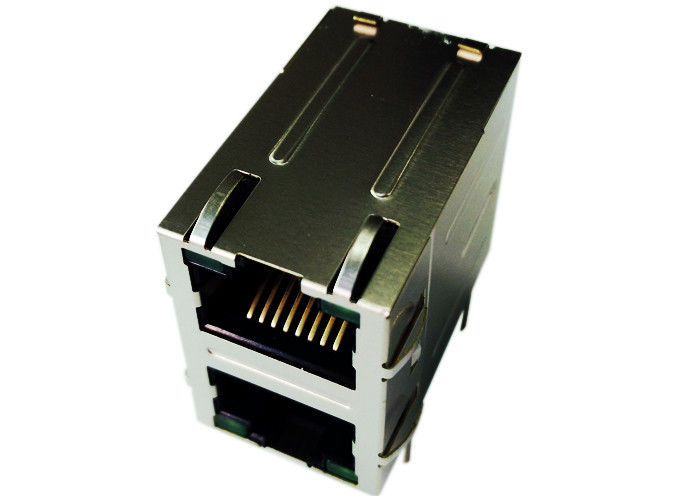

LPJG17561AHNL is a dual‑port 2×1 1000Base‑T RJ45 modular Ethernet jack with integrated magnetics, green/yellow LED indicators, and shielded EMI tabs — ideal for industrial switches, routers, media converters, cameras, and storage devices. The PBT housing (UL 94V‑0) and phosphor‑bronze contacts ensure durability and signal integrity over long-term operation. Compliant with IEEE 802.3, RoHS, UL, and ISO standards.
| Characteristic | Specification |
|---|---|
| Model Number | LPJG17561AHNL |
| Type | 2×1 Dual-Port RJ45 Modular Ethernet Connector |
| Supported Standards | 10Base-T / 100Base-TX / 1000Base-T (Gigabit Ethernet) |
| Mounting Type | Through-Hole (THT) |
| Ports / Contacts | 2 ports, 8p8c standard RJ45 contacts |
| LED Indicators | Green / Yellow (Link/Activity) |
| Housing Material | Thermoplastic PBT, UL 94V-0 |
| Contact Material & Plating | Phosphor Bronze, 50 micro-inch hard gold |
| Output Pins | Tin-plated copper wire, diameter 0.018 inch |
| Metal Shield | Copper alloy with nickel plating, EMI shield tabs |
| Operating Temperature | -40°C to 85°C |
| Compliance & Certifications | IEEE 802.3, RoHS, UL, ISO9001/14001 |
| Package | Tray |
| Net Weight per Piece | 0.019 kg |
| Typical Applications | Industrial switches, routers, media converters, network adapters, webcams, storage devices |
