Product Details
Place of Origin: Made In China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO

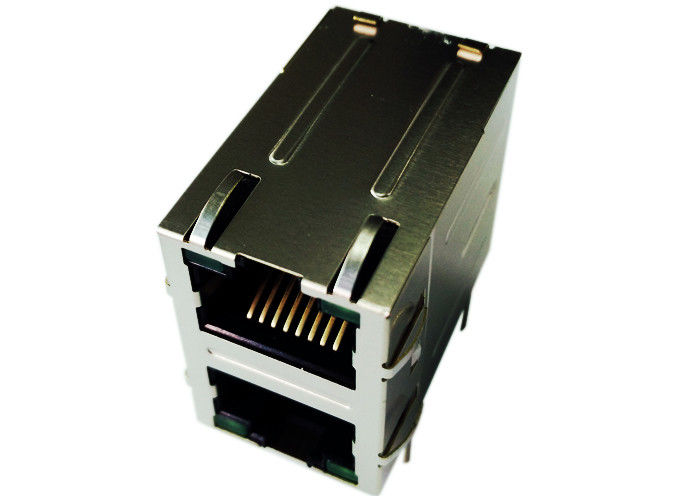

Model Number: LPJG17561AHNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
PN: |
LPJG17561AHNL |
Spec: |
RJ-21Q077AB2A4D068 |
Application: |
Industry Switch, Router ,Gateway... |
Ethernet: |
2x10/100/1000Mbps |
Indicator: |
LED Flexible |
Samples: |
Available |
PN: |
LPJG17561AHNL |
Spec: |
RJ-21Q077AB2A4D068 |
Application: |
Industry Switch, Router ,Gateway... |
Ethernet: |
2x10/100/1000Mbps |
Indicator: |
LED Flexible |
Samples: |
Available |
Electrical Specifications @25℃
1.Turns Ratio:
PRI:SEC = 1CT:1CT %%P2%P2.OCL:
350uH MIN @ 100KHz,100mV,8mADC
3.Insertion Loss:
1～100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1～30MHz:-18 30～60MHz:-14
60～80MHz:-12
5.Crosstalk(dB TYP):
1～30MHz:-40 30～60MHz:-35
60～80MHz:-30
6.Differential to Common Mode Rejection:
1～50MHz: -30dB TYP
50～150MHz: -20dB TYP
7.CMRR: 1～100MHz:-30dB MIN
8.Isolation: 1500Vrms MIN
9.Operating Temperature Range: -40℃～+85℃.
|
|
|
RJ-21Q077AB2A4D068
