Model Number: 0810-2H4R-BG-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
0810-2H4R-BG-F |
Updated: |
LPJ47312A43NL |
Ethernet: |
10/100BT X8 Port |
Indicator: |
LEDs-Green-Yellow |
Spec: |
0810-2H4R-BG-F |
Updated: |
LPJ47312A43NL |
Ethernet: |
10/100BT X8 Port |
Indicator: |
LEDs-Green-Yellow |
|
Listing Description:
|
|
|
|
1) manufacturer of RJ45 AND Lan transformer for 16years
|
|
|
1)ISO9001,SGS,UL,CE,REACH
|
|
|
3)Main customer:TI GE SONY Samsung IBM CANON
|
|
|
4)PULSE OEM for 9years
|
|
Detailed Description:
|
|
|

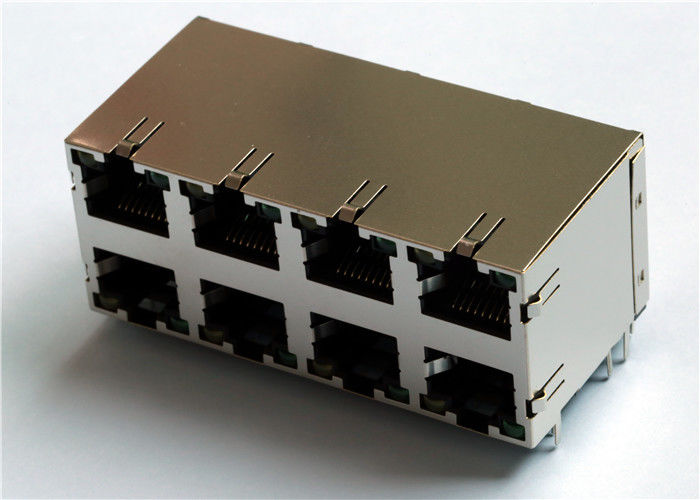

Cross Equivalent to 0810-2H4R-BG-F MagJack 10/100BaseT, 2X4, 3w-YG, -40 to 85*C RoHS
|
|
|
1.Characteristics:
|
1)RJ45 Connector with integrated transformer/common mode choke
|
|
|
2)Available in SMD, THT and THT with USB
|
|
|
3)350µH min. OCL with 8mA bias
|
|
|
4)Complies with IEEE 802.3u
|
|
|
5)Extended temperature range -40°C to +85°C available
|
|
|
|
|
0810-2H4R-BG-F Pin to Pin
|
|
|
2. Operation/Application:
|
1)10/100 Base-T
|
|
|
2)xDSL Modems
|
|
|
3)Embedded PC
|
|
|
4)LAN Applications
|
|
|
5)Hub, Router, Switches
|
|
3. Mechanical Attachment:
|
|
|
1) Jack Configuration
|
2x6
|
|
3. Electrical Characteristics:
|
|
|
1) Shielded
|
Yes
|
|
4. Termination Related Features:
|
|
|
1) EMI Finger
|
Yes
|
|
2) Termination Method
|
Solder
|
|
5. Body Related Features:
|
|
|
1) Port Configuration
|
Single
|
|
2) EMI Fingers -Top and Sides
|
With/Without
|
|
3) Latch Orientation
|
Standard - Latch Down
|
|
4) PCB Tail Length
|
3.50±0.50mm
|
|
6. Contact Related Features:
|
|
|
1) Preloaded
|
Yes
|
|
2) Contact Termination Type
|
Through Hole
|
|
7. Housing Related Features:
|
|
|
1) Connector Style
|
Jack
|
|
8. Industry Standards:
|
|
|
1) RoHS/ELV Compliance
|
RoHS compliant, ELV compliant
|
|
2) Lead Free Solder Processes
|
Wave solder capable to 265°C
|
|
3) RoHS/ELV Compliance History
|
Always was RoHS compliant
|
|
9. Identification Marking:
|
|
|
1) Left LED Color
|
Green or Yellow
|
|
2) Right LED Color
|
Green or Yellow
|
|
10. Conditions for Usage:
|
|
|
1) Applies To
|
Printed Circuit Board
|
|
2) Environmental Conditions
|
Office / Premises
|
|
3) Operating Temperature (°C )
|
0 - 70/-40 - +85
|
|
11. Configuration Related Features
|
|
|
1) Magnetic Circuit
|
3D15
|
|
2) Status Indicator
|
Led
|
|
3) Decoupling Capacitor
|
With/Without
|
|
4) Rear PCB Ground Tab
|
With/Without
|
|
5) Signal Lead Quantity
|
