Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 0810-2H4R-28-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month

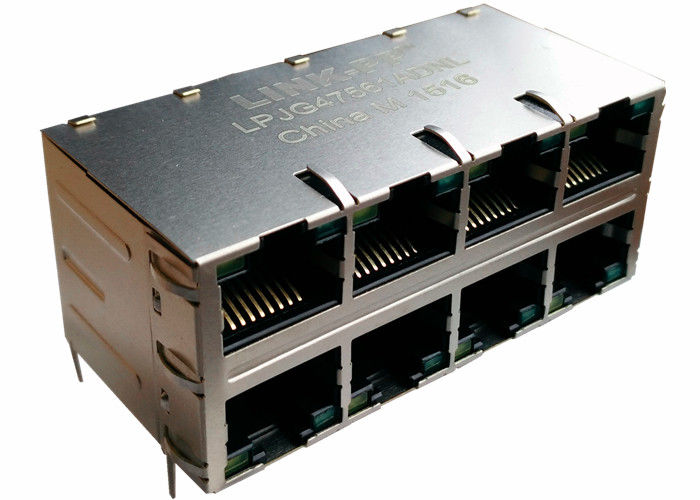

1.2X4 Port Stacked RJ45 magjack
2.10/100/1000BASE RJ45 PCB connector
3.HUB, PC card, Switch RJ45 modular jack
4.Belfuse MagJack
Description:
Listing Description: |
|
|
1) manufacturer of RJ45 AND Lan transformer for 16years |
|
1)ISO9001,SGS,UL,CE,REACH |
|
3)Main customer:TI GE SONY Samsung IBM CANON |
|
4)PULSE OEM for 9years |
Detailed Description: |
|
0810-2H4R-28-F MagJack 10/100BaseT, 2X4, 3w-YG |
|
1.Characteristics: |
1)RJ45 Connector with integrated transformer/common mode choke |
|
2)Available in SMD, THT and THT with USB |
|
3)350µH min. OCL with 8mA bias |
|
4)Complies with IEEE 802.3 |
|
5)Extended temperature range -40°C to +85°C available |
|
6)PoE/ PoE+ |
|
|
2. Operation/Application: |
1)10/100 Base-T |
|
2)xDSL Modems |
|
3)Embedded PC |
|
4)LAN Applications |
|
5)Hub, Router, Switches |
3. Mechanical Attachment: |
|
1) Jack Configuration |
2x4 |
3. Electrical Characteristics: |
|
1) Shielded |
Yes |
4. Termination Related Features: |
|
1) EMI Finger |
Yes |
2) Termination Method |
Solder |
5. Body Related Features: |
|
1) Port Configuration |
Single |
2) EMI Fingers -Top and Sides |
With/Without |
3) Latch Orientation |
Standard - Latch Down |
4) PCB Tail Length |
3.50±0.50mm |
6. Contact Related Features: |
|
1) Preloaded |
Yes |
2) Contact Termination Type |
Through Hole |
7. Housing Related Features: |
|
1) Connector Style |
Jack |
8. Industry Standards: |
|
1) RoHS/ELV Compliance |
RoHS compliant, ELV compliant |
2) Lead Free Solder Processes |
Wave solder capable to 265°C |
3) RoHS/ELV Compliance History |
Always was RoHS compliant |
9. Identification Marking: |
|
1) Left LED Color |
Green or Yellow |
2) Right LED Color |
Green or Yellow |
10. Conditions for Usage: |
|
1) Applies To |
Printed Circuit Board |
2) Environmental Conditions |
Office / Premises |
3) Operating Temperature (°C ) |
0 - 70/-40 - +85 |
11. Configuration Related Features |
|
1) Magnetic Circuit |
3D15 |
2) Status Indicator |
Led |
3) Decoupling Capacitor |
With/Without |
4) Rear PCB Ground Tab |
With/Without |
5) Signal Lead Quantity |
8 |
Main customer:
TEXAS INTRUMENTS SAMSUNG GE SONTY CANNON FLEXTRONICS
LINK-PP are the best supplier of Texas Instruments ,Samsung, and General Electric. Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0
you will look at our logo: "LINK-PP" on BeagleBone Black.
BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.
Production Line:
TEST EQUIPMENTS:
1. ROHS Analyzer
2.EMI TESTING
3.HIPOT TESTING
5.Auto Transformer Tester
