Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 0811-2X6G-28
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month

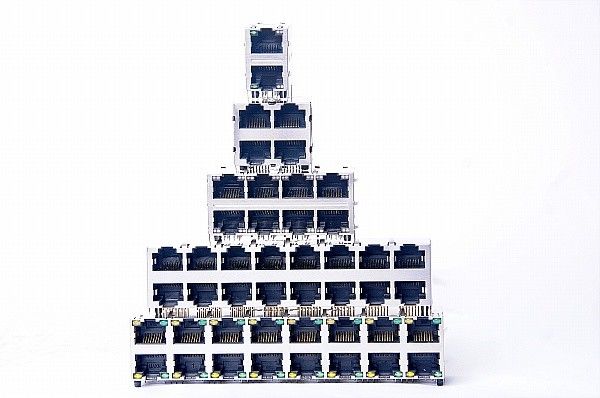

10/100BaseT Shielded Stacked RJ45 Right Angle With No LED 0811-2X6G-28
1.Right Angle Stacked MagRJ45
2.Belfuse Magjack
3.10/100BSE
4.-40 to 85*C
| Listing Description: | |
| 1) manufacturer of RJ45 AND Lan transformer for 16years | |
| 1)ISO9001,SGS,UL,CE,REACH | |
| 3)Main customer:TI GE SONY Samsung IBM CANON | |
| 4)PULSE OEM for 9years | |
| Detailed Description: | |
| 0811-2X6G-28 MagJack 10/100BaseT, 2X6, No LED | |
| 1.Characteristics: | 1)RJ45 Connector with integrated transformer/common mode choke |
| 2)Available in SMD, THT and THT with USB | |
| 3)350µH min. OCL with 8mA bias | |
| 4)Complies with IEEE 802.3 | |
| 5)Extended temperature range -40°C to +85°C available | |
| 6)PoE/ PoE+ | |
| 2. Operation/Application: | 1)10/100 Base-T |
| 2)xDSL Modems | |
| 3)Embedded PC | |
| 4)LAN Applications | |
| 5)Hub, Router, Switches | |
| 3. Mechanical Attachment: | |
| 1) Jack Configuration | |
| 3. Electrical Characteristics: | |
| 1) Shielded | Yes |
| 4. Termination Related Features: | |
| 1) EMI Finger | Yes |
| 2) Termination Method | Solder |
| 5. Body Related Features: | |
| 1) Port Configuration | Single |
| 2) EMI Fingers -Top and Sides | With/Without |
| 3) Latch Orientation | Standard - Latch Down |
| 4) PCB Tail Length | 3.50±0.50mm |
| 6. Contact Related Features: | |
| 1) Preloaded | Yes |
| 2) Contact Termination Type | Through Hole |
| 7. Housing Related Features: | |
| 1) Connector Style | Jack |
| 8. Industry Standards: | |
| 1) RoHS/ELV Compliance | RoHS compliant, ELV compliant |
| 2) Lead Free Solder Processes | Wave solder capable to 265°C |
| 3) RoHS/ELV Compliance History | Always was RoHS compliant |
| 9. Identification Marking: | |
| 1) Left LED Color | Green or Yellow |
| 2) Right LED Color | Green or Yellow |
| 10. Conditions for Usage: | |
| 1) Applies To | Printed Circuit Board |
| 2) Environmental Conditions | Office / Premises |
| 3) Operating Temperature (°C ) | 0 - 70/-40 - +85 |
| 11. Configuration Related Features | |
| 1) Magnetic Circuit | 3D15 |
| 2) Status Indicator | Led |
| 3) Decoupling Capacitor | With/Without |
| 4) Rear PCB Ground Tab | With/Without |
| 5) Signal Lead Quantity | 8 |
