Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 0813-1X1T-43-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: $0.06-$0.35
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Products Type: |
MagJacks (ICMs) |
Part Number: |
0813-1X1T-43-F |
Number Of Ports: |
1X1 |
Speed: |
1000BASE-T |
EMI Tabs: |
With |
LED: |
Without |
RoHS Compliant: |
YES-RoHS |
Operating Temperature: |
0 ~ +70ºC |
Products Type: |
MagJacks (ICMs) |
Part Number: |
0813-1X1T-43-F |
Number Of Ports: |
1X1 |
Speed: |
1000BASE-T |
EMI Tabs: |
With |
LED: |
Without |
RoHS Compliant: |
YES-RoHS |
Operating Temperature: |
0 ~ +70ºC |

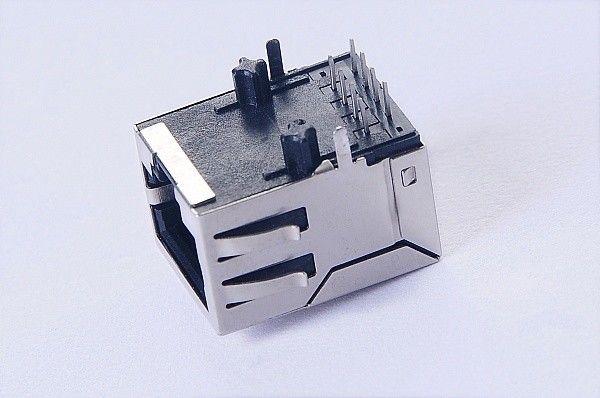

The 0813-1X1T-43-F is a high-performance, single-port (1x1) RJ45 Integrated Connector Module (ICM) designed for 1000BASE-T (Gigabit Ethernet) applications. This MagJack® combines the high-density benefits of an industry-standard RJ45 connector with precision-engineered magnetics, providing superior signal integrity, EMI suppression, and galvanic isolation in a single, PCB-space-saving component.
| Parameter | Specification |
|---|---|
| Product Name | 0813-1X1T-43-F RJ45 With Magnetics |
| Type | MagJack / ICM |
| Number of Ports | 1x1 |
| Speed | 1000BASE-T |
| Height Profile | Standard |
| LED | No |
| Port Configuration | Tab Down |
| PoE Rating | Non PoE |
| Mounting Type | Through Hole Mount |
| Operating Temperature | 0°C to +70°C |
| EMI Tabs | Yes |
| RoHS Compliance | Yes |
0813-1X1T-43-F is a 1x1 RJ45 MagJack (Integrated Connector Module, ICM) designed for 1000BASE-T Ethernet applications. It combines the RJ45 connector and magnetics into a single compact solution, helping simplify PCB design, reduce layout complexity, and support reliable Gigabit Ethernet performance.
Built with a standard height profile, tab down port orientation, and through-hole mounting, this connector is a practical choice for networking equipment that requires stable mechanical retention and dependable signal integrity. It also includes EMI tabs and is RoHS compliant, making it suitable for modern industrial and commercial network designs.
1. Turns Ratio
TP1: 1CT : 1CT ±2%
TP2: 1CT : 1CT ±2%
TP3: 1CT : 1CT ±2%
TP4: 1CT : 1CT ±2%
2. OCL @ 100kHz / 100mVRMS: 8mA DC bias: 350µH min.
3. Insertion Loss
0.1MHz to 1MHz: -1.1 dB max
1MHz to 65MHz: -0.5 dB max
65MHz to 100MHz: -0.8 dB max
100MHz to 125MHz: -1.2 dB max
4. Return Loss (Minimum)
0.5MHz to 40MHz: -18 dB
40MHz to 100MHz: -12 + 20log(f/80MHz) dB
5. Common Mode to Common Mode Rejection: 100kHz to 100MHz: -30 dB min
6. Common Mode to Differential Mode Rejection: 100kHz to 100MHz: -35 dB min
7. Hipot / Isolation Voltage: 1500 Vrms or 2250 VDC
The 0813-1X1T-43-F MagJack is a versatile solution for a wide range of Ethernet-enabled devices, including:
This RJ45 connector with magnetics is ideal for:
Because the magnetics are integrated into the connector, the design can be more compact and easier to route.
The part is designed for 1000BASE-T, making it a strong fit for high-speed copper Ethernet links.
The tab down configuration and no LED design support streamlined front-panel and board layouts.
Built-in EMI tabs help improve noise control and support more robust system performance.
With RoHS compliance, this connector fits modern environmental and manufacturing requirements.
