Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO

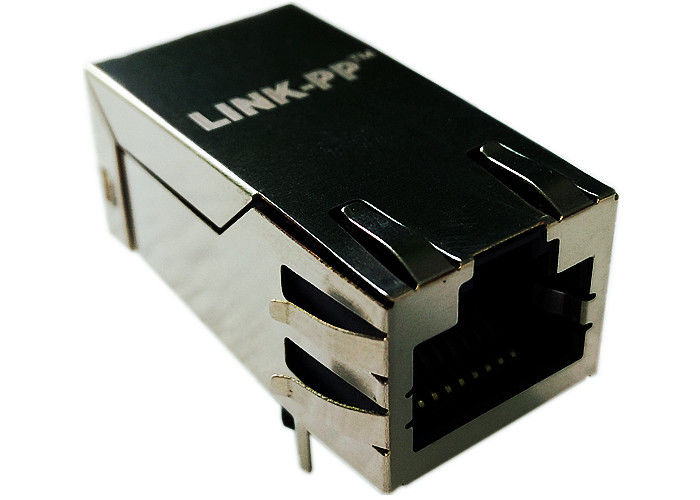

Model Number: 0816-1X1T-23-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Specifications: |
0816-1X1T-23-F |
P/N: |
LPJK0071CNL |
Ethernet: |
1x Gigabit |
Samples: |
Available |
Specifications: |
0816-1X1T-23-F |
P/N: |
LPJK0071CNL |
Ethernet: |
1x Gigabit |
Samples: |
Available |
| 1.Designed to support application,such as SOHO(ADSL | |
||
| modems),LAN-on-Motherboard(LOM),hub and Switches. | |||
| 2.Meets IEEE 802.3 specification | |||
| 3.Connector Materials: | |||
| Housing: Thermoplastic PBT+30%G.F UL94V-0 | |||
| Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm | |||
| Pins: Brass C2680R-H Thickness=0.35mm | |||
| Shield: SUS 201-1/2H Thickness=0.2mm | |||
| Contact plating: Gold 6 micro-inches min.In contact area. | |||
| 4.Wave solder tip temperature: 265℃ Max, 5 Sec Max | |||
| 5.UL Certification: File Number E484635 | |||
