Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJK7036-1A98NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
LPJK7036-1A98NL |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
100/1000 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Part Number: |
LPJK7036-1A98NL |
OEM & ODM: |
LINK-PP |
Ethernet Aplly: |
100/1000 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
The LPJK7036-1A98NL supports speed 100/1000 Base-T, It is compliant with IEEE 802.3 at, UL, Reach, RoHs, ISO19001, and ISO14001 standards. It can support applications, such as Raspberry Pi 3B, Digital Camera, Industrial PC and Embedded Main Boards.
| LINK-PP Part Number: | LPJK7036A98NL | ||
| Part Status | Active | Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet (NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100/1000 Base-T |
| Latch | Up | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Orange&Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.445/11.30 | Package Length (Inches/mm) | 0.946/24.04 |
| Package Width (Inches/mm) | 0.700/17.78 | Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
| You may be interested in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free sample delivery, pls advise below information For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door-to-door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycle | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
LPJK7036-1A98NL 1000 Base-T Low Profile RJ45 Connector Package:

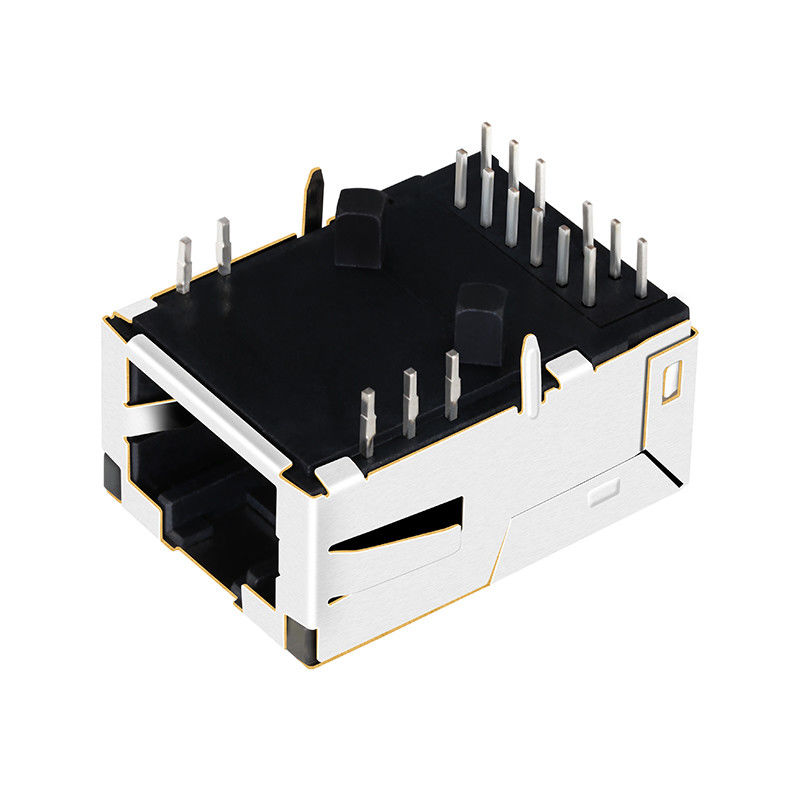

LPJK7036-1A98NL 1000 Base-T 1x1 Port Low Profile RJ45 Connector Product Display:
LINK-PP INT'L TECHNOLOGY CO., LIMITED
is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000 ,ROSH,REACH, CEand UL, owns advanced manufacturing facilities and test equipments imported from abroad.
Established in 1997, we have around 2600 staff at present. With the abundant productive capacity of 6000K per month, we are able to delivery the goods within the short time.Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card,Switch
,Router,PC Mainboard,SDH,PDH,IP Phone,xDSL modem.
Link-pp Main Product
• RJ45 Modular Jack & USB Jack
• 10/100M/1G/2.5G/5G/10G Discrete Magnetic
• 10/100M/1G/2.5G/5G/10G Magnetic RJ45
• T1/E1/T3/E3 Transformer
• SFP/SFP+ Cage&Receptacle Connector
• Optical Transceivers
FAQ
Q1. How about the quality?
A: We tested 100% before we shipped out. We offer 90- 180 days of quality assurance.
Q2. What are your terms of payment?
A: Orders below 10000 USD are T/T 100% in advance.
B: Order over 10000 USD T/T 50% as deposit to arrange goods. and rest 50% before delivery.
C: For sample orders, we can support PAYPAL, WESTERN UNION, UnionPay, and Alipay.
Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF.(defaults EXW for all quotations)
Q4. How about your lead time?
A: There is no lead time for in-stock products. We can ship out within 1-3 days after you confirm the payment.
B: Customized product, we will ship out within our professional invoice show.
Q5. What is your sample policy?
A: For most of the products, we can offer free samples; you just need to pay the shipping cost.
