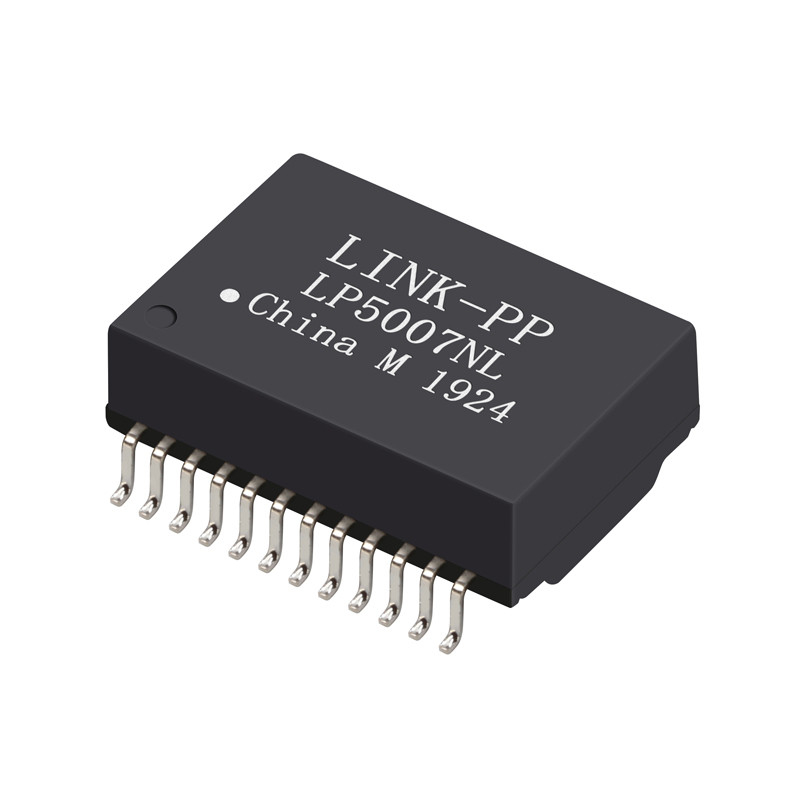

PT61020EL Gigabit 24 Pin Single Port SMT PoE Gigabit Ethernet Transformer

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: LP5007NL

Payment & Shipping Terms

Minimum Order Quantity: 400/2000/10K/25K

Price: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Get Best Price
Highlight:

PT61020EL

,

PoE Gigabit Ethernet Transformer

,

24 Pin POE Ethernet Transformer

Original:
PT61020EL
Equivalent:
LP5007NL
Speed:
1000 Base-T
Transformer Type:
Isolation And Data Interface
Temperature:
-40°C ~ 85°C
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Original:
PT61020EL
Equivalent:
LP5007NL
Speed:
1000 Base-T
Transformer Type:
Isolation And Data Interface
Temperature:
-40°C ~ 85°C
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
PT61020EL Gigabit 24 Pin Single Port SMT PoE Gigabit Ethernet Transformer

PT61020EL 24 PIN Gigabit Ethernet Transformer Electrical Specifications @ 25°C

Specification Value
Inductance 350 µH min @ 100 kHz, 0.2 V, 8 mA DC bias
Leakage Inductance 0.50 µH max @ 100 kHz, 0.2 V
Interwinding Capacitance 25 pF typ @ 100 kHz, 0.2 V
DC Resistance (DCR) 0.90 Ω max
Insertion Loss -1.1 dB max (0.3–100 MHz)
Return Loss -18 dB min (0.3–30 MHz) -14.4 dB (40 MHz) -13.1 dB (50 MHz) -12 dB (60–80 MHz)
Crosstalk -35 dB min (0.3–30 MHz) -28 dB min (60–100 MHz)
Common Mode Rejection -40 dB min (0.3–30 MHz) -35 dB (60 MHz) -30 dB (80–100 MHz)
Turns Ratio 1CT : 1 ±5%
PoE+ Current Up to 650 mA for 1000BASE-T
Isolation Voltage (Hi-Pot) 1500 VAC, 1 mA, 1 second
Operating Temperature Range -40°C to +85°C

Product Description

The PT61020EL is a single-port, surface-mount LAN transformer module designed for 10/100/1000 Base-T Ethernet applications. Encased in a potted construction for enhanced durability, this transformer is ideally suited for high-performance networking equipment that requires Power over Ethernet (PoE+).

With a compact footprint of 17.62 × 16 × 6 mm, the PT61020EL integrates robust magnetic performance with a high isolation barrier of 1.5 kVrms, ensuring reliable signal integrity and system protection.

It supports PoE+ current up to 650 mA, meeting the needs of IEEE 802.3 Ethernet systems including routers, switches, IP cameras, and industrial networking devices.



PT61020EL​ 1000Base-T LAN Transformer Features:


Compliant with IEEE802.3ab Draft Standards for 1000 Base-T
Designed for Long Haul Gigabit Ethernet 10/100/1000 Base-T Full Duplex applications
Low profile surface mount packaging designed for reflow process (245 ° peak)
Supports 4 pairs of Category 5 UTP cables
RoHS compliant

PT61020EL Applications:


■ LAN
■ Ethernet





PT61020EL Gigabit 24 Pin Single Port SMT PoE Gigabit Ethernet Transformer 0
