Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
1-1840784-1 |
Equivalent: |
LPJxxxxxx |
Ethernet Aplly: |
1000 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
1-1840784-1 |
Equivalent: |
LPJxxxxxx |
Ethernet Aplly: |
1000 Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| 1-1840784-1 Detailed Information | |
| LINK-PP Part Number | LPJGxxxxxx |
| Part Number | 1-1840784-1 |
| PoE Rating | NO POE |
| Part Status | Active |
| Speed | 1000 BASE-T |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| Cores per Port | 8 |
| LED Option | Green&Orange/Green |
| Latch | Tab up |
| Number of Ports | 1X1 |
| PCB Mount Angle | SIDE ENTRY |

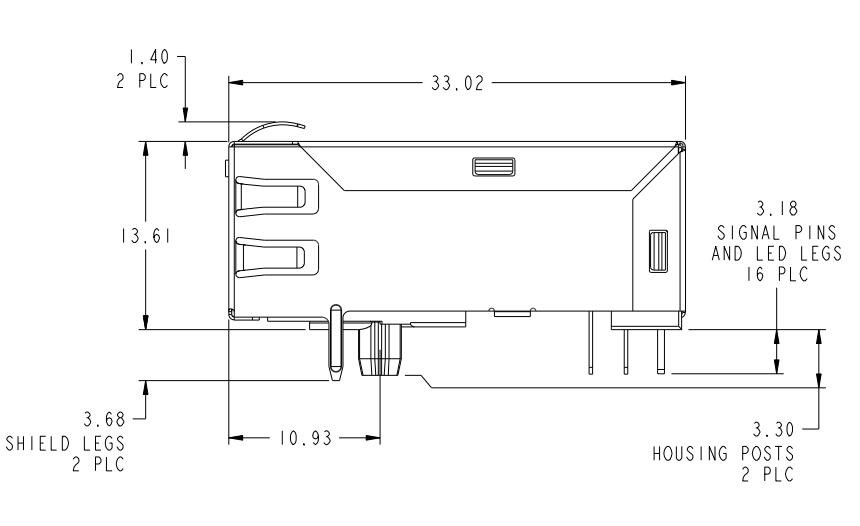

| Package Height (Inches/mm) | 0.536/13.61 |
| Package Length (Inches/mm) | 1.30/32.02 |
| Package Width (Inches/mm) | 0.661/16.79 |
| Shield EMI Tabs | WITH |
| Temperature | 0 TO 70℃ |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly | ||||
1-1840784-1 Rj45 Integrated Connector Electrical Schematic:
1-1840784-1 Gigabit Rj45 Integrated Connector Modules Material:

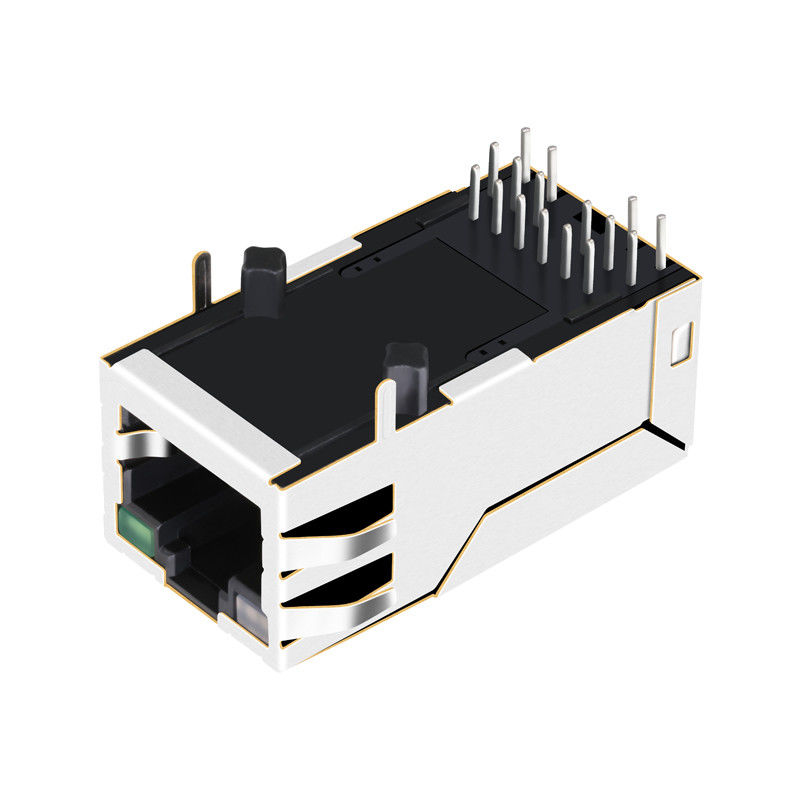

1-1840784-1 Magnetic RJ45 Jack Description:
The 1-1840784-1 supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.
1-1840784-1 OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as network connector and lan magnetics or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
