Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJGxxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JT5-2210NL |
Equivalent: |
LPJGxxxxxxx |
Ethernet Aplly: |
10G Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JT5-2210NL |
Equivalent: |
LPJGxxxxxxx |
Ethernet Aplly: |
10G Base-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

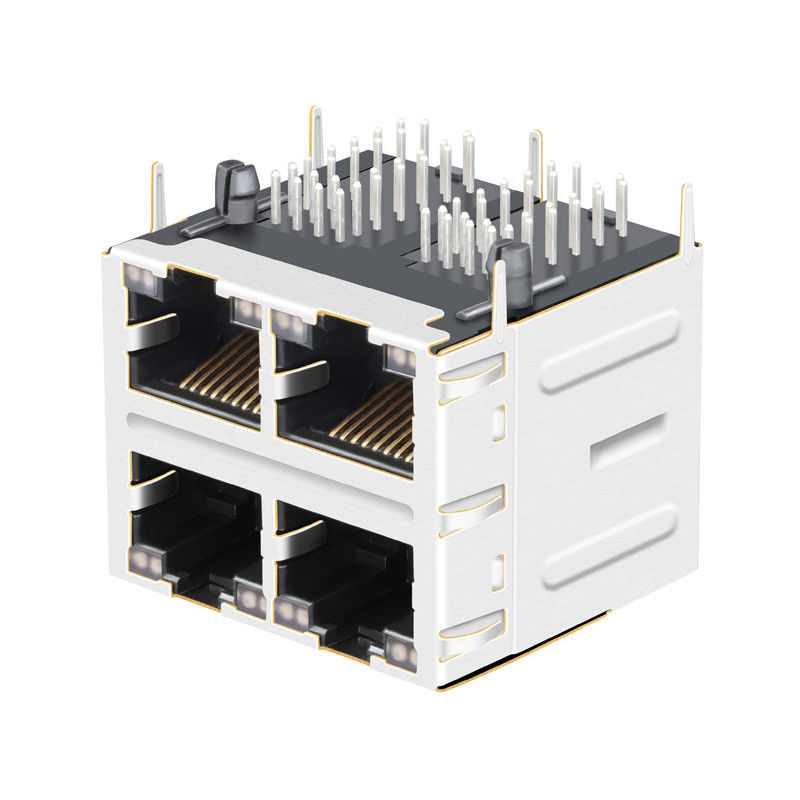

The JT5-2210NL supports speed 10G Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Switches, Ethernet Control, Hub and Entrance Guard System.
| LINK-PP Part Number | LPJXxxxxxx |
| Pulse Part Number | JT5-2210NL |
| Part Status | Active |
| Speed | 10G BASE-T |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| LED Option | With LIGHT PIPES |
| Latch | Both |
| Number of Ports | 2X2 PORT |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| POE RATING | NON-POE |
| Temperature | 0 TO 70℃ |
| CONTACT MATING AREA PLATING | GOLD 50 U'' |
| PACKAGE HEIGHT MM | 25.59 |
| PACKAGE LENGTH MM | 41.20 |
| PACKAGE WIDTH MM | 35.72 |
JT5-2210NL 10G Base-T RJ45 connectors Mechanical Specification:
JT5-2210NL 2x2 Port Magnetic RJ45 Jacks Electrical Schematic:
JT5-2210NL RJ45 Magjack Description:
