Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JK0-8001NL |
Equivalent: |
LPJxxxxxxx |
Ethernet Aplly: |
HD BASE-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JK0-8001NL |
Equivalent: |
LPJxxxxxxx |
Ethernet Aplly: |
HD BASE-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| LINK-PP Part Number | LPJXxxxxxx |
| Pulse Part Number | JK0-8001NL |
| Part Status | Active |
| Speed | HD BASE-T |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| Cores per Port | 8 |
| LED Option | NO Led |
| Latch | Tab Up |
| Number of Ports | 1X1 PORT |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| POE RATING | 4PAIR POE 30W |
| Temperature | 0 TO 70℃ |
| CONTACT MATING AREA PLATING | GOLD 30 U'' |
| PACKAGE HEIGHT MM | 13.87 |
| PACKAGE LENGTH MM | 33.02 |
| PACKAGE WIDTH MM | 16.79 |

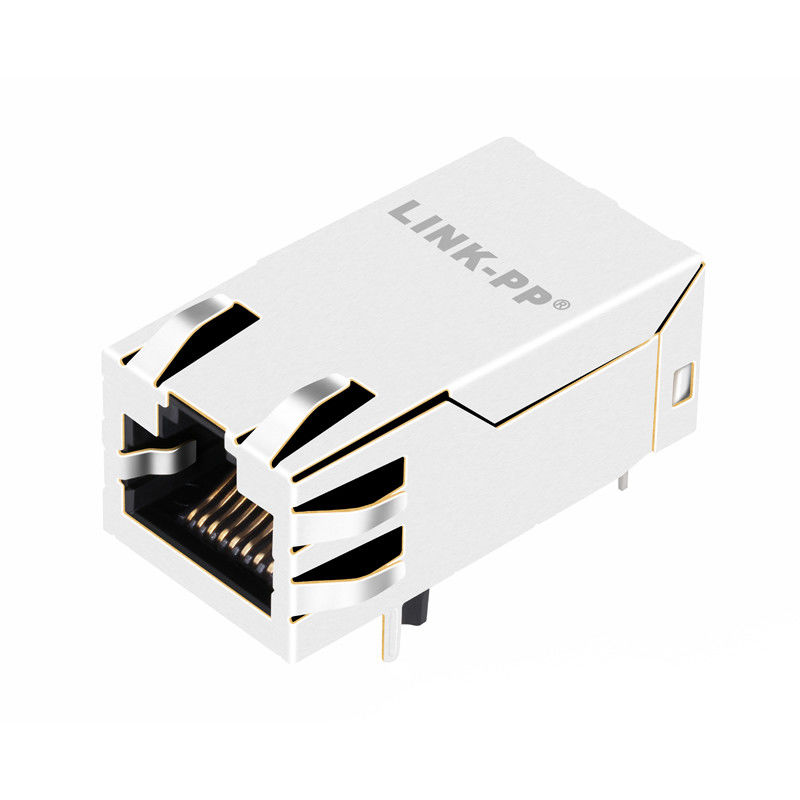

JK0-8001NL Single Port HD BASE-T RJ45 connector Mechanical Specification:
JK0-8001NL HD BASE-T Magnetic Jack Electrical Schematic:
JK0-8001NL RJ45 Magjack Description:
JK0-8001NL RJ45 Connector Package:
