Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJGxxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
J1V-U2100NL |
Equivalent: |
LPJxxxxxxx |
Ethernet Aplly: |
10G BASE-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
J1V-U2100NL |
Equivalent: |
LPJxxxxxxx |
Ethernet Aplly: |
10G BASE-T |
Samples: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
The J1V-U2100NL supports speed 10G Base-T, It can be used to support application, such as Smart Home, Monitoring System, hub and switches.
| LINK-PP Part Number | LPJxxxxxxx |
| Pulse Part Number | J1V-U7000NL |
| Part Status | Active |
| Speed | 10G BASE-T |
| Connector Type | Jack |
| Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
| Cores per Port | 8 |
| LED Option | Yellow/GREEN&GREEN |
| Latch | NOT APPLICABLE |
| Number of Ports | 1X1 PORT |
| PCB Mount Angle | TOP ENTRY |
| Shield EMI Tabs | WITH |
| POE RATING | 4PAIR POE 60W |
| Temperature | 0 TO 70℃ |
| CONTACT MATING AREA PLATING | GOLD 30 U'' |
| PACKAGE HEIGHT MM | 14.77 |
| PACKAGE LENGTH MM | 34.29 |
| PACKAGE WIDTH MM | 17.60 |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

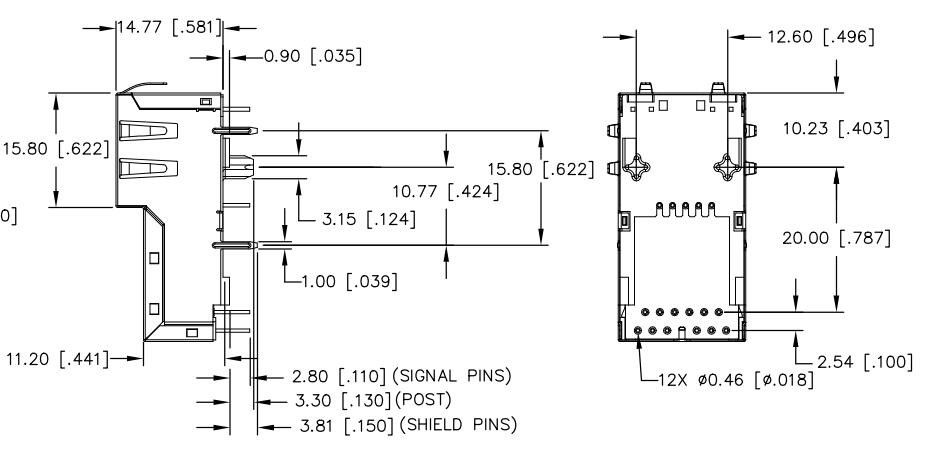

J1V-U7000NL TOP ENTRY VERTICAL RJ45 Connector Mechanical Specification:
J1V-U7000NL 10GBASE-T VERTICAL RJ45 Ethernet Connector Electrical Schematic:
J1V-U7000NL Electrical Specifications:
J1V-U7000NL RJ45 Ethernet Connector Description:
J1V-U7000NL VERTICAL RJ45 Ethernet Connector Similar Part Number :
| J1V-U7000NL | JKM-0200NL | JK0-0229NL |
| JK0-8001NL | J0B-0364NL | E5J88-41AHS4-LT |
