Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JT3-1115HL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JT3-1115HL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
0°C ~ 70°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
LINK-PP Part Number | LPJxxxxxx |
Part Number | JT3-1115HL |
Part Status | Active |
Connector Type | Jack |
Number of Positions/Contacts | 12p8c (RJ45, Ethernet) |
SPEED | 10GBASE-T |
POE RATING | NON-POE |
LED Option | GREEN&YELLOW/GREEN led |
Latch | Tab Down |
Number of Ports | 1X1 PORT |
PCB Mount Angle | SIDE ENTRY |
Shield EMI Tabs | WITH |
Operating Temperature | 0°C ~70°C |
CONTACT MATING AREA PLATING | Gold 50 U" |
PACKAGE HEIGHT MM | 11.63 |
PACKAGE LENGTH MM | 33.27 |
PACKAGE WIDTH MM | 17.58 |
You may be interesting in below considerate supports: | ||||
Datasheet | Request by email to | contact us | ||
Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
Company Name | ||||
Delivery Address | ||||
Telephone Number | ||||
Contact Person | ||||
UPS/DHL/Fedex/TNT A.C | (If available) | |||
Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
L/T(Weeks) | Stock | |||
Shipping Term | DAP/CIF/FCA/FOB | |||
Mass Production | U/P(USD) | Stock | ||
L/T(Weeks) | Stock | |||
Shipping Term | DAP/CIF/FCA/FOB | |||
Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
Reject Ratio | Zero Defective (100% Tested) | |||
Special Services | Accept customized service | Accept revised designing | ||
Now you can contact us instantly |
JT3-1115HL Mechanical Specification:

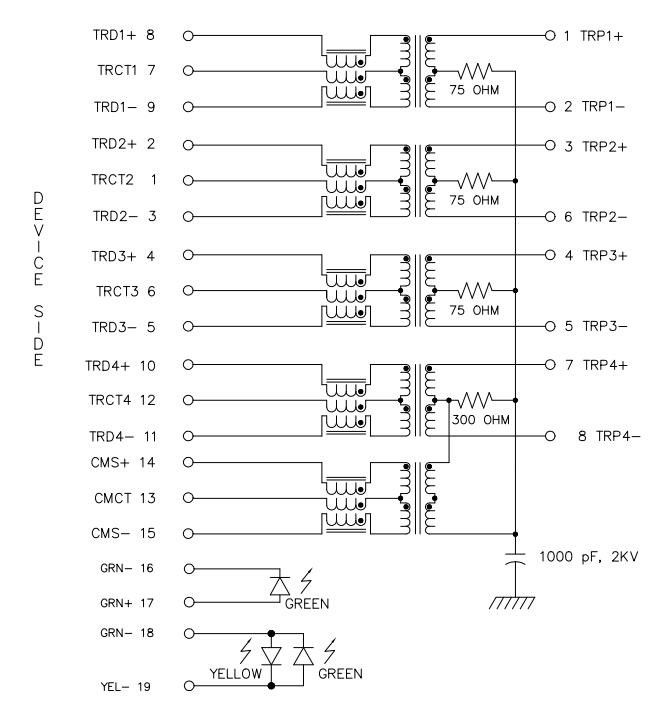

JT3-1115HL 10GBASE-T RJ45 Jack Female Connector Electrical Schematic:
JT3-1115HL RJ45 Jack Similar Part Number :
JT3-1105HL | JT3-1115HL | JT3-1125HL |
JT3-1128HL | JT4-1109HL | JT4-1120HL |
