Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JXD2-0Z15NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JXD2-0Z15NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| LINK-PP Part Number | LPJxxxxxx |
| Part Number | JXD2-0Z15NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| SPEED | 1000 BASE-T |
| POE RATING | NON-POE |
| LED Option | YELLOW/GREEN Led |
| Number of Ports | 1X1 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40°C ~85°C |
| CONTACT MATING AREA PLATING | Gold 30 U" |
| PACKAGE HEIGHT MM | 16.95 |
| PACKAGE LENGTH MM | 16.90 |
| PACKAGE WIDTH MM | 16.10 |

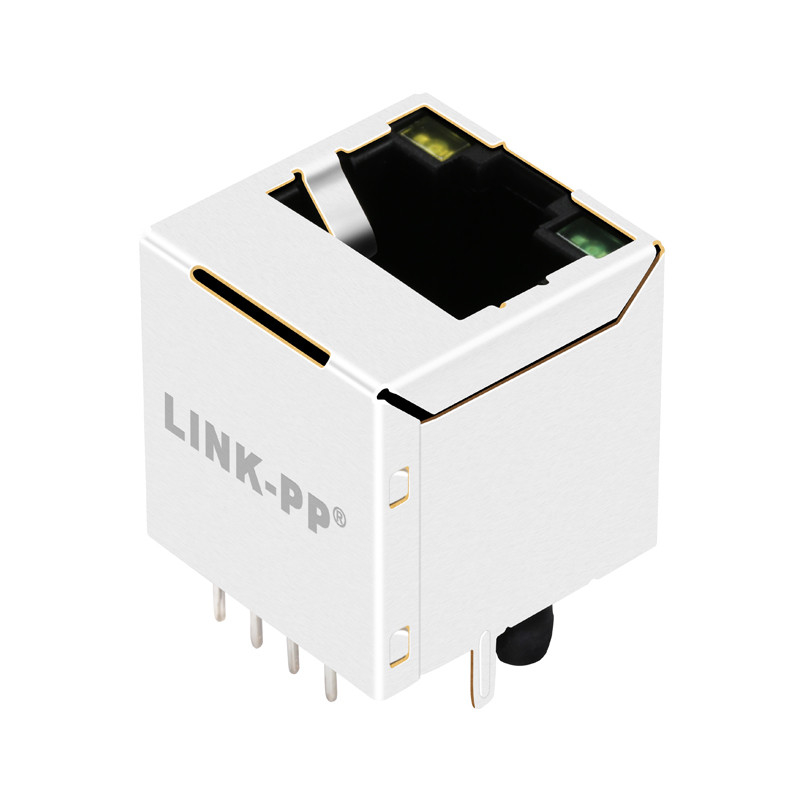

JXD2-0Z15NL 1000BASE-T VERTICAL RJ45 Jack Description:
Industrial Fast Ethernet and Gigabit (10/100/1000Base-T) single port RJ45 vertical/ top entry integrated magnetics connector,
designed to support applications, such as embedded automation and drive control, wall and panel mount HMI and outdoor networks.
.RoHS peak wave solder temperature rating 260°C
.Top entry, small footprint to minimize board space
.Meets IEEE 802.3 specification
.350μH minimum OCL with 8mA bias current
.High performance for maximum EMI suppression
JXD2-0Z15NL 1000BASE-T Single Port VERTICAL RJ45 Connector Electrical Schematic:
| JXD2-0Z10NL | JXD2-0Z11NL | JXD2 0Z14NL |
| JXD2-0Z15NL | JXD2-0Z25NL | JXD2-9001NL |
JXD2-0Z15NL Single Port Vertical Rj45 Connctor Package:
Package:Tray N.W/pcs:0.008kg
SPQ:50pcs Qty/carton:1000pcs
Carton size:32*30*31cm G.W./carton:8kg
