Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
JXD2-9001NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
JXD2-9001NL |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| LINK-PP Part Number | LPJxxxxxx |
| Part Number | JXD2-9001NL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| SPEED | 100 BASE-T |
| POE RATING | NON-POE |
| LED Option | Without Led |
| Number of Ports | 1X1 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40°C ~85°C |
| CONTACT MATING AREA PLATING | Gold 30 U" |
| PACKAGE HEIGHT MM | 17.50 |
| PACKAGE LENGTH MM | 16.80 |
| PACKAGE WIDTH MM | 16.0 |

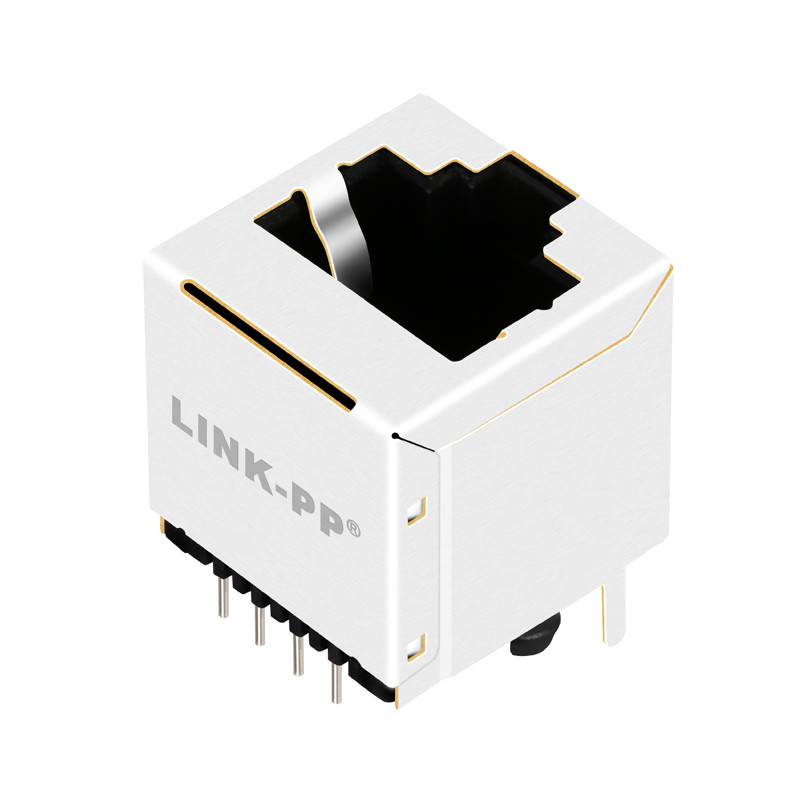

JXD2-9001NL 100BASE-T 1X1 PORT VERTICAL RJ45 Jack Electrical Schematic:
| JXD2-9001NLT | JXD2-0Z11NL | JXD2 0Z14NL |
| JXD2-0Z15NL | JXD2-0Z25NL | JXD2-9001NL |
JXD2-9001NL Vertical Rj45 Connctor Package:
Package:Tray N.W/pcs:0.008kg
SPQ:50pcs Qty/carton:1000pcs
Carton size:32*30*31cm G.W./carton:8kg
