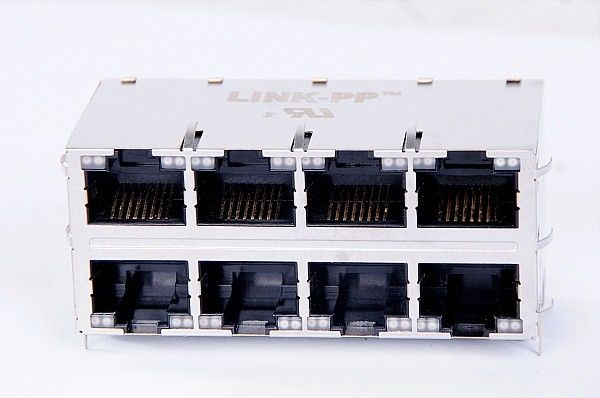

Magnetic POE RJ45 Connector with LEDs , 2 X 4 Port Cisco POE Switch

1.2 X 4 Port POE RJ45 Connector
2.10 / 100 / 1000M POE RJ45 Magjack
3.right angle modular jack
4.rj45 female connector

Description:

2X4 10 /100 /1000M POE / POE+ RJ45 Magjack with/without leds , meeting IEEE 802.3af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 2 x 4

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch,
Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time

Main customer:

TEXAS INTRUMENTS SAMSUNG GE SONY CANNON FLEXTRONICS

LINK-PP are the Biggest RJ45 supplier of Texas Instruments ,Samsung, and SONY. Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0

you will look at our logo: "LINK-PP" on BeagleBone Black.

BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.

Production Line:

TEST EQUIPMENTS:

1. ROHS Analyzer

2.EMI TESTING

3.HIPOT TESTING

5.Auto Transformer Tester
