Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJGxxxxxx
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Original: |
ARJM11A3-009-AB-ER2 |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
ARJM11A3-009-AB-ER2 |
Equivalent: |
LPJxxxxxx |
Operating Temperature: |
-40°C ~ 85°C |
Samples:: |
Free Available |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

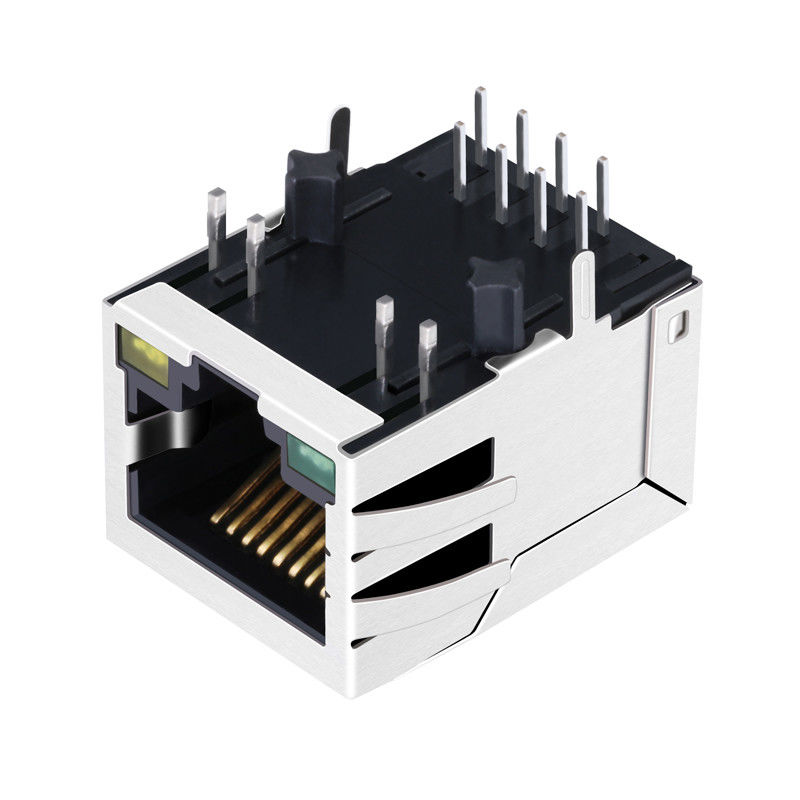

| LINK-PP Part Number | LPJxxxxxx |
| Part Number | ARJM11A1-009-AB-ER2 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| LATCH | Tab Down |
| SPEED | 100 BASE-T |
| POE RATING | NON POE |
| LED Option | Green/Yellow Leds |
| Number of Ports | 1X1 Port |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | WITH |
| Operating Temperature | -40°C ~85°C |
| PACKAGE HEIGHT MM | 13.30 |
| PACKAGE LENGTH MM | 21.25 |
| PACKAGE WIDTH MM | 15.93 |
ARJM11A3-009-AB-ER2 FEATURES:
ARJM11A3-009-AB-ER2 100 BASE-T RJ45 Magnetics Connector Electrical Schematic:
ARJM11A1-009-AB-ER2 RJ45 Jack Similar Part Number :
| ARJM11A1-009-AB-ER2 | ARJM11A1-009-AB-EW2 | ARJM11A1-009-AB-EW4 |
| ARJM11A1-009-NN-ER3 | ARJM11A1-009-NN-EW2 | ARJM11A3-009-AB-ER2 |
| ARJM11B1-009-AB-EW2 | ARJM11B1-009-NN-ER2 | ARJM11B1-009-NN-EW2 |
| ARJM11C7-009-AB-EW2 | ARJM11C7-009-KB-EW2 | ARJM11C7-009-NN-EW2 |
| ARJM11D7-009-AB-EW2 | ARJM11D7-009-NN-EW2 |
