Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499010211A
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: OEM Price
Packaging Details: Tray Package: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 8.5 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Data Rate: |
100BASE-TX |
PoE: |
Non-PoE |
Ports: |
1x1 |
Tab: |
Down |
Operating Temperature: |
0 °C Up To +70 °C |
LED: |
Green-yellow |
PHY Chip Mode: |
Current & Voltage |
Mount: |
THT |
Data Rate: |
100BASE-TX |
PoE: |
Non-PoE |
Ports: |
1x1 |
Tab: |
Down |
Operating Temperature: |
0 °C Up To +70 °C |
LED: |
Green-yellow |
PHY Chip Mode: |
Current & Voltage |
Mount: |
THT |

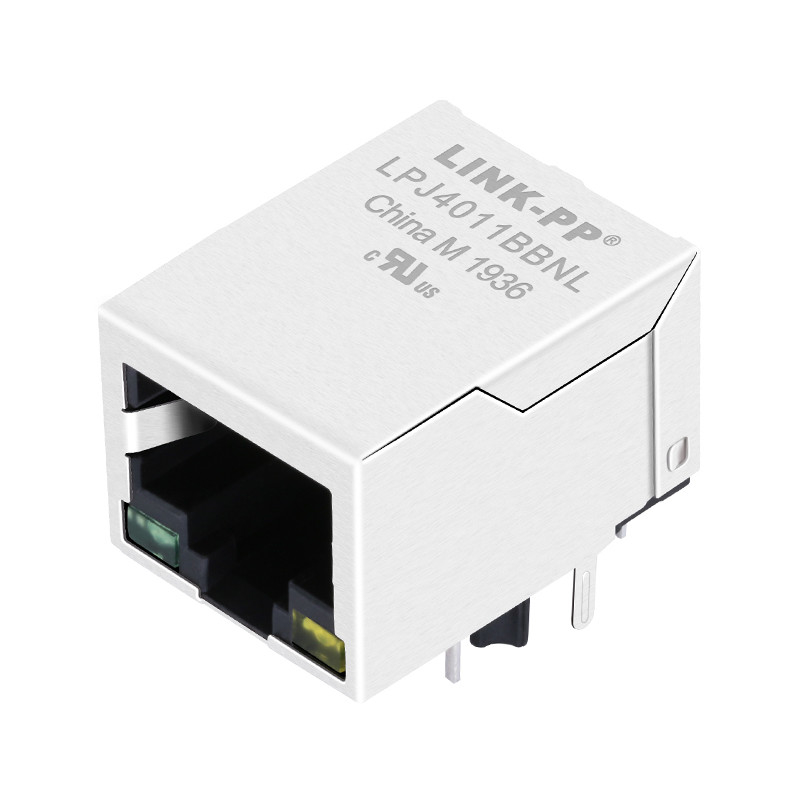

LINK-PP LPJ4011BBNL 100% Cross We 7499010211A 100 Base-T Single Port RJ45 Jack With Integrated Magnetics
|
Single Port RJ45 8P8C Jack with 10/100 Base-T Integrated Magnetics, Green/Yellow, Tab Down, RoHS |
|
|
LINK-PP Part Number |
LPJ4011BBNL |
|
Application-Lan |
ETHERNET(NoN PoE) |
|
Part Number |
7499010211A |
|
Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
|
Cores per Port |
4 |
|
Diodes |
NO DIODES |
|
LED Option |
GREEN/YELLOW |
|
Latch |
TAB DOWN |
|
Number of Ports |
1X1 |
|
PCB Mount Angle |
SIDE ENTRY |
|
Package Height (mm) |
13.40 |
|
Package Length (mm) |
21.30 |
|
Package Width (mm) |
15.90 |
|
Pin Type |
THT SOLDER |
|
RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
|
Search |
YES |
|
Shield EMI Tabs |
WITHOUT |
|
Speed |
10/100 BASE-T |
|
Temperature |
- 40℃ TO + 85℃ |
|
Turns Ratio RX |
1CT:1CT |
|
Turns Ratio TX |
1CT:1CT |
LPJ4011BBNL 100% Cross We 7499010211A 100 Base-T Single Port RJ45 Filter Connector Electrical Schematic:
LPJ4011BBNL 100% Cross We 7499010211A Mechanical Specification:
