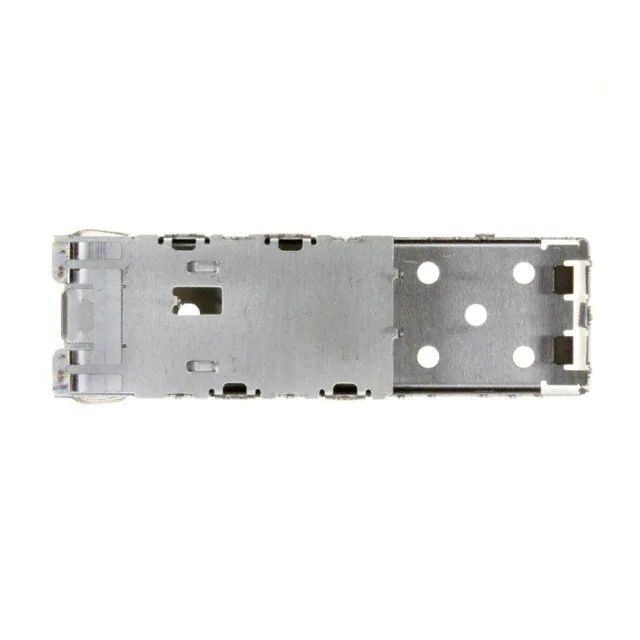

2007194-1 SFP+ Cage Assembly 1x1 Port 16 GB/S Through Hole Press-Fit

TE Connectivity 2007194-1 SFP+ Cage, a 1x1 single-port SFP+ cage with 16 Gb/s max data rate, through-hole solder termination, nickel silver housing, and EMI springs.

Nickel Silver SFP+ Cage with Internal/External EMI Springs Overview

The 2007194-1 SFP+ Cage is a practical choice for designers building compact, high-speed optical or copper pluggable interfaces where a single SFP+ port is required. Its 16 Gb/s rating, through-hole solder post termination, and EMI spring design make it a strong fit for systems that need dependable signal integrity and mechanical stability on the PCB.

TE’s product page classifies this part as a cage for the SFP+ pluggable I/O family, with 1 port, 1 x 1 port matrix configuration, and -55°C to 105°C operating temperature range.

Key Features & Benefits

• High-Speed Performance: Optimized for SFP+ applications with data rates up to 16 Gb/s.
• Robust EMI Shielding: Features integrated internal and external EMI springs to ensure maximum containment and signal purity.
• Extreme Temperature Resilience: Rated for operation from -55°C to 105°C, suitable for both commercial and ruggedized industrial applications.
• Premium Material Construction: Fabricated from Nickel Silver for enhanced corrosion resistance and structural integrity.
• Precision PCB Mounting: Through-hole solder termination with a 2.8mm tail length, optimized for a 1.5mm recommended PCB thickness.

Technical Specifications of 2007194-1 SFP+ Cage

2007194-1 SFP+ Cage Connector Drawing

SFP+ Cage Assembly Applications Connector Drawing

The 2007194-1 SFP+ cage is a versatile solution for high-bandwidth I/O applications, including:

• Storage Area Networks (SAN): High-speed data transfer and server connectivity.
• Networking Switches & Routers: Reliable 16 Gb/s uplink and downlink ports.
• Industrial Computing: Robust performance in extreme temperature environments.
• Telecommunications: Base stations and backhaul equipment requiring EMI-protected I/O.

FAQ about 2007194-1

The 2007194-1 SFP+ Cage is a dependable 1-port, 1 x 1 SFP+ cage built for 16 Gb/s applications, with through-hole solder mounting, nickel silver construction, and EMI spring containment.

1. What is the 2007194-1?

The 2007194-1 is a TE Connectivity SFP+ cage with a 1 x 1 single-port configuration.

2. What is the maximum data rate of the 2007194-1?

The maximum data rate is 16 Gb/s.

3. How is the 2007194-1 mounted to the PCB?

It uses through-hole solder termination with a 2.8 mm tail length.

4. Does the 2007194-1 include EMI protection features?

Yes. It uses internal/external EMI springs for EMI containment.

5. What is the operating temperature range?

The operating temperature range is -55°C to 105°C.
