Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 2274001-1
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $3.1
Packaging Details: 20/Tray
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days,Western Union
Supply Ability: 350K/Month
Product Type: |
ZSFP+ Cage Assembly |
Number Of Ports: |
1 |
Maximum Data Rate: |
32 Gb/s |
Termination Method To PCB: |
Through Hole - Press-Fit |
Cage Material: |
Nickel Silver Alloy |
Lifecycle: |
More Than 20Years |
Product Type: |
ZSFP+ Cage Assembly |
Number Of Ports: |
1 |
Maximum Data Rate: |
32 Gb/s |
Termination Method To PCB: |
Through Hole - Press-Fit |
Cage Material: |
Nickel Silver Alloy |
Lifecycle: |
More Than 20Years |

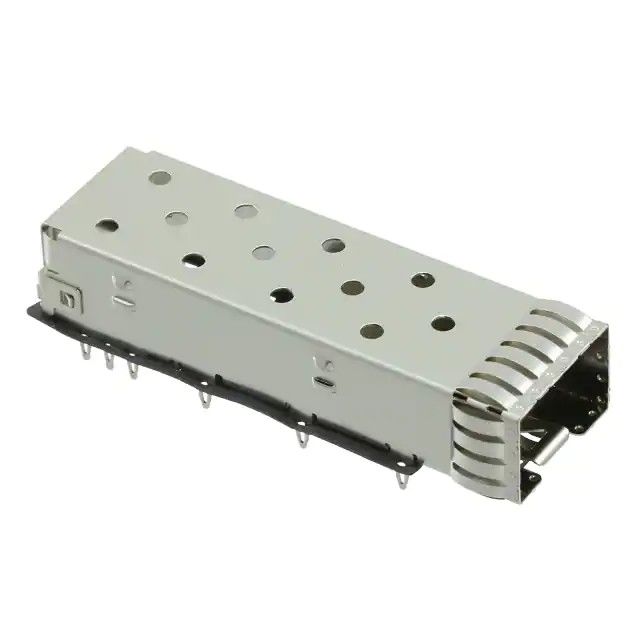

The 2274001-1 zSFP+ Cage Assembly is a compact 1x1 cage assembly designed for high-speed zSFP+ thermally enhanced applications. Built with a press-fit standard termination method and integrated EMI springs, this cage supports data rates up to 32 Gb/s while helping maintain signal integrity in demanding networking environments.
Made from nickel silver alloy and engineered for a -55°C to 105°C operating temperature range, the 2274001-1 is a strong choice for next-generation optical and high-speed interconnect designs that require reliable mechanical retention, shielding performance, and board-level stability.
| Item | Specification |
|---|---|
| Part Number | 2274001-1 |
| Product Type | zSFP+ Cage Assembly |
| Form Factor | zSFP+ |
| Configuration | 1 x 1 |
| Ports | 1 |
| Cage Type | Single |
| Maximum Data Rate | 32 Gb/s |
| PCB Termination | Through Hole - Press-Fit |
| Termination Post & Tail Length | 3 mm |
| Cage Material | Nickel Silver Alloy |
| Recommended PCB Thickness | 1.5 mm [0.059 in.] |
| Operating Temperature Range | -55°C to 105°C |
| EMI Feature | Internal/External EMI Springs |
| Heat Sink Compatible | No |
| Lightpipe Included | No |
| Packaging | Tray |
With support for up to 32 Gb/s, the 2274001-1 is built for modern high-speed interconnect applications where stable mechanical and electrical performance is essential.
The integrated internal/external EMI springs help improve containment and shielding performance, which is especially important in dense system layouts with sensitive signal paths.
The through-hole press-fit termination provides strong board retention and supports reliable assembly in production environments.
Although this cage does not include a heatsink, it is intended for zSFP+ thermally enhanced applications, making it suitable for designs that manage thermal performance at the system level.
The -55°C to 105°C operating range makes this part suitable for demanding networking and embedded applications where environmental robustness matters.
| 2007215-1 | 2057021-1 | 2170703-5 |
| 2170703-4 | 1888674-1 | 2170193-1 |
| 2007198-1 | 2110304-1 | 2317434-1 |
| 2007254-1 | 2170773-6 | 2143432-1 |
| 2291579-1 | 2007193-1 | 2274001-1 |
The 2274001-1 zSFP+ Cage Assembly combines 32 Gb/s performance, EMI springs, nickel silver alloy construction, and press-fit mounting in a 1x1 single-port format. It is a strong choice for engineers sourcing a reliable zSFP+ cage for high-speed, thermally enhanced networking applications.
The 2274001-1 is a zSFP+ cage assembly used to support zSFP+ modules in high-speed networking and signal applications.
No. This part is not heat sink compatible.
The maximum supported data rate is 32 Gb/s.
It uses through-hole press-fit termination.
Yes. It supports an operating temperature range of -55°C to 105°C.
