Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 747500304
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Part Number: |
1888617-1 |
Product Type: |
QSFP+ Cage Assy |
Number Of Ports: |
1 |
Data Rate (Max) (Gb/s): |
- |
Termination: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Part Number: |
1888617-1 |
Product Type: |
QSFP+ Cage Assy |
Number Of Ports: |
1 |
Data Rate (Max) (Gb/s): |
- |
Termination: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |

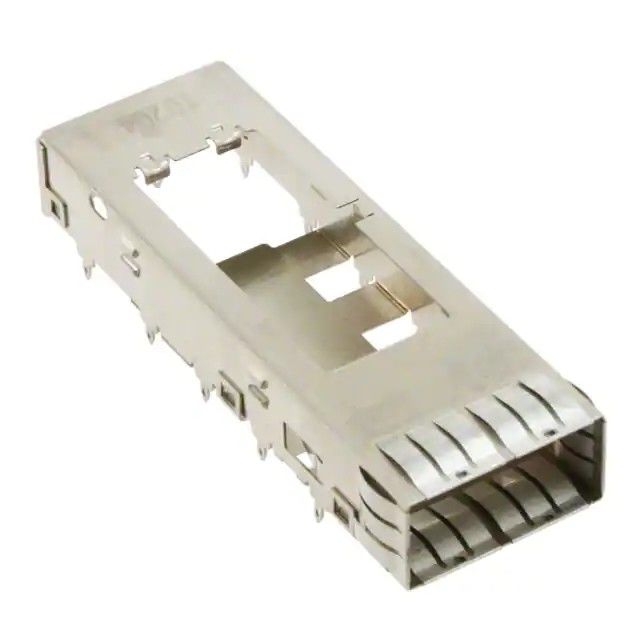

The 747500304 QSFP+ cage with heat sink and spring fingers is a high-speed EMI cage solution designed for QSFP+ pluggable interfaces. Built for applications that require reliable thermal management and strong electromagnetic interference protection, this part combines a heat sink, spring fingers, and a durable metal structure to support stable performance in demanding networking environments.
As part of the 74750 series, this active component is a practical choice for equipment designs that prioritize signal integrity, thermal efficiency, and compliance. Its 1x1 cage configuration makes it suitable for compact high-speed port designs where consistent shielding and cooling are essential.
| Item | Details |
|---|---|
| Part Number | 747500304 |
| Product Type | QSFP+ Cage with Heat Sink |
| Description | QSFP+ Heat Sink for 1x1 EMI Cages with Spring Fingers |
| Product Category | High-Speed EMI Cages |
| Component Type | Heatsink |
| Product Name | QSFP Plus, QSFP+ |
| Material - Metal | Aluminum |
| Heat Sink Clip Material | Stainless Steel |
| Packaging Type | Tray |
| Net Weight | 8.800 g |
| EMI Panel / Bezel Mount | N/A |
| Light Pipes per Port | 0 |
| Orientation | N/A |
| Port Configuration | N/A |
| Rear Legs | N/A |
| Thermal Height | NET |
| Thermal Solutions | Pin Field |
The 747500304 QSFP+ cage with heat sink and spring fingers is suitable for use in:
If you are searching for a QSFP+ cage with heat sink and spring fingers, the 747500304 offers a balanced design that supports both thermal performance and EMI protection. Its material selection, active product status, and compliance profile make it a strong fit for product development and system integration teams working on reliable high-speed connectivity solutions.
The 747500304 is a QSFP+ heat sink for 1x1 EMI cages with spring fingers, designed to support thermal management and EMI shielding in high-speed networking designs.
Yes. It is designed for QSFP+ applications and is identified as a QSFP Plus, QSFP+ product.
The heat sink is made from anodized aluminum, and the heat sink clip is made from stainless steel.
Yes. The product meets EU RoHS requirements and also lists REACH SVHC and Low-Halogen compliance.
