Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Original Part No: |
2170705-7 |
Connector Type: |
ZQSFP+ Cage Assembly |
EMI Springs: |
Internal/External EMI Springs |
Data Rate (Max) : |
28 Gb/S |
Light Pipe: |
Included Lightpipe |
Port Configuration: |
1 X 1 (Single) |
Heat Sink: |
With Heat Sink |
Connector System: |
Cable-to-Board |
Part Status: |
Active |
Lifecycle: |
More Than 20Years |
Original Part No: |
2170705-7 |
Connector Type: |
ZQSFP+ Cage Assembly |
EMI Springs: |
Internal/External EMI Springs |
Data Rate (Max) : |
28 Gb/S |
Light Pipe: |
Included Lightpipe |
Port Configuration: |
1 X 1 (Single) |
Heat Sink: |
With Heat Sink |
Connector System: |
Cable-to-Board |
Part Status: |
Active |
Lifecycle: |
More Than 20Years |
QSFP, QSFP+ & zQSPF+, Cage Assembly, 1 x 1, Internal/External EMI Springs, Included Lightpipe, Standard, Data Rate (Max) 28 Gb/s, zQSFP+/QSFP28

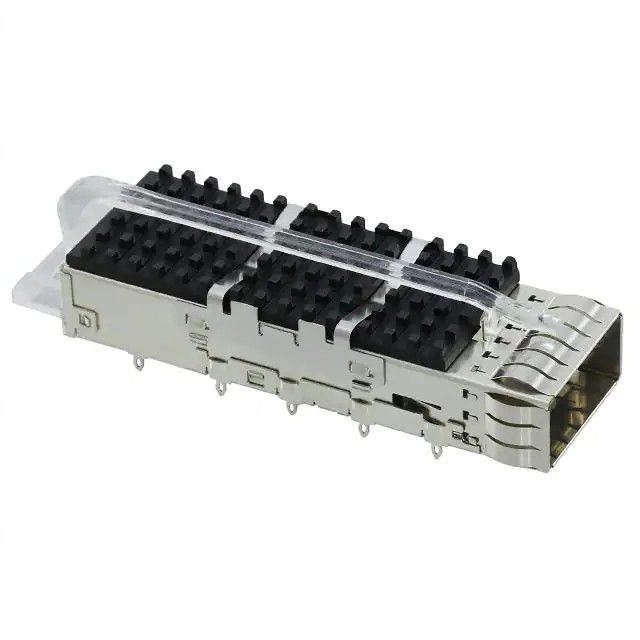

2170705-7 Cage assembly designed for QSFP28/56 form factor with efficient thermal dissipation. This pluggable I/O connector is integrated with the heat sink, ensuring thermal management. The connector and cage assembly are available in a 1 x 1 port matrix configuration. The internal/external EMI springs can suppress electromagnetic interference.
The connector system is wire-to-board, providing a safe and reliable connection. Through-hole and right-angle mounting to the PCB board. Each cage assembly includes a pin-type heat sink with a height rating of 4.2 mm for PCI. It is designed to operate over a wide temperature range, making it suitable for a variety of environmental conditions. Ideal for pluggable I/O applications such as SFP+ stacked Belly-to-Belly connections. It comes with light pipes for added convenience.
|
Cage Type |
Cage with Heat Sink |
Termination Method to Printed Circuit Board |
Through Hole - Press-Fit |
|
Form Factor |
QSFP28/56 |
Termination Post & Tail Length |
2.05 mm [.081 in] |
|
Pluggable I/O Product Type |
Cage Assembly |
Connector Mounting Type |
Board Mount |
|
Thermal Accessory Type Included |
Heat Sink |
Cage Material |
Nickel Silver |
|
Connector System |
Cable-to-Board |
PCB Thickness (Recommended) |
1.57 mm [.062 in] |
|
Sealable |
No |
Operating Temperature Range |
-40 – 85°C [-40 – 185°F] |
|
Mounting Type |
Through Hole, Right Angle |
Pluggable I/O Applications |
SFP+ Stacked Belly-to-Belly |
|
Termination |
Press-Fit |
Circuit Application |
Signal |
|
Connector & Contact Terminates To |
Printed Circuit Board |
UL Flammability Rating |
UL 94V-0 |
|
Port Matrix Configuration |
1 x 1 |
EMI Containment Feature Type |
Internal/External EMI Springs |
|
Number of Ports |
1 |
Included Lightpipe |
Yes |
|
Lightpipe Configuration |
Single-Round |
Enhancements |
Standard |
|
EMI Containment Feature |
Type Internal/External EMI Springs |
Number of Rear EONs per Port Column |
1 |
|
Data Rate (Max) (Gb/s) |
28 |
Heat Sink Height |
4.2 mm [.165 in] |
|
Heat Sink Style |
Pin |
Heat Sink Height Class |
PCI |
|
Heat Sink Finish |
Anodized Black |
PCB Contact Termination Area Plating Material |
Tin |
|
