Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Original: |
2291634-1 |
Connector Type: |
QSFP+ Cage |
Part Status: |
Active |
Data Rate (Max) (Gb/s): |
14 Gb/s |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
2291634-1 |
Connector Type: |
QSFP+ Cage |
Part Status: |
Active |
Data Rate (Max) (Gb/s): |
14 Gb/s |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| Part Number | 2291634-1 |
|---|---|
| Part Status | Active |
| Connector Type | SFP+ |
| Connector Style | Cage with Heat Sink |
| Number of Ports | 1X1 port |
| Included Lightpipe | NO |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) | 16 Gb/s |
| Features | EMI Shielded |
| Operating Temperature Range | -55 – 105 °C |
| PCB Thickness (Recommended) | 1.5 mm |
| Tail Length | 3 mm |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | EMI Springs |
| Circuit Application | Signal |
| Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

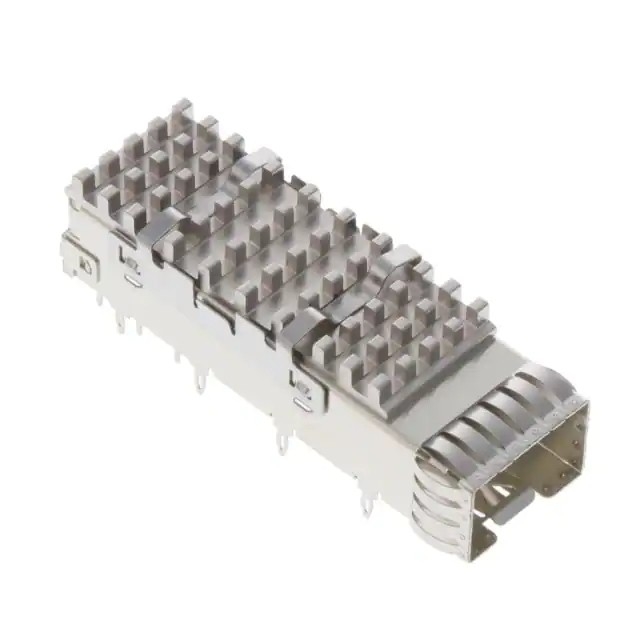

2291634-1 SFP+ Cage Assembly With Heat Sink 16 Gb/s Drawing:
2291634-1 Description:
| 2057855-1 | 1888968-1 | 1551892-1 |
| 2170705-4 | 2170704-7 | 2170705-7 |
| 2170754-1 | 1551892-2 | 2170450-1 |
| 2170753-2 | 2354935-1 | 1888631-2 |
| 2291634-1 | 2170704-8 | 2170752-1 |
