TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket

TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket
TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket

Large Image :  TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Payment & Shipping Terms:
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Detailed Product Description
Original: 2170288-1 Connector Type: QSFP
Part Status: Active Connector Style: Cage, Ganged (1 X 4)
File: PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters Lifecycle: More Than 20Years
High Light:

2170288-1

,

TE 2170288-1

,

QSFP Cage 1x4

TE 2170288-1 QSFP Cage 1x4 Port Press-Fit Elastomeric Gasket

2170288-1,QSFP, Cage, 1 x 4, Elastomeric Gasket, Standard, 4 Port, 2 Rear EONs per Port Column, Cable-to-Board, Sealable

Part Number 2170288-1
Part Status Active
Connector Type QSFP
Connector Style Cage, Ganged (1x4)
Number of Ports 1X4 port
Included Lightpipe No
PCB Mounting Style Through Hole - Press-Fit
Data Rate (Max)  -
Features EMI Shielded
Operating Temperature Range -55 – 105 °C
PCB Thickness (Recommended) 1.45 mm [ .057 in ]
Tail Length 2.2 mm [ .086 in ]
Cage Material Nickel Silver
EMI Containment Feature Type Internal/External EMI Springs
Circuit Application Signal
Pluggable I/O Applications SFP+ Stacked Belly-to-Belly




You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

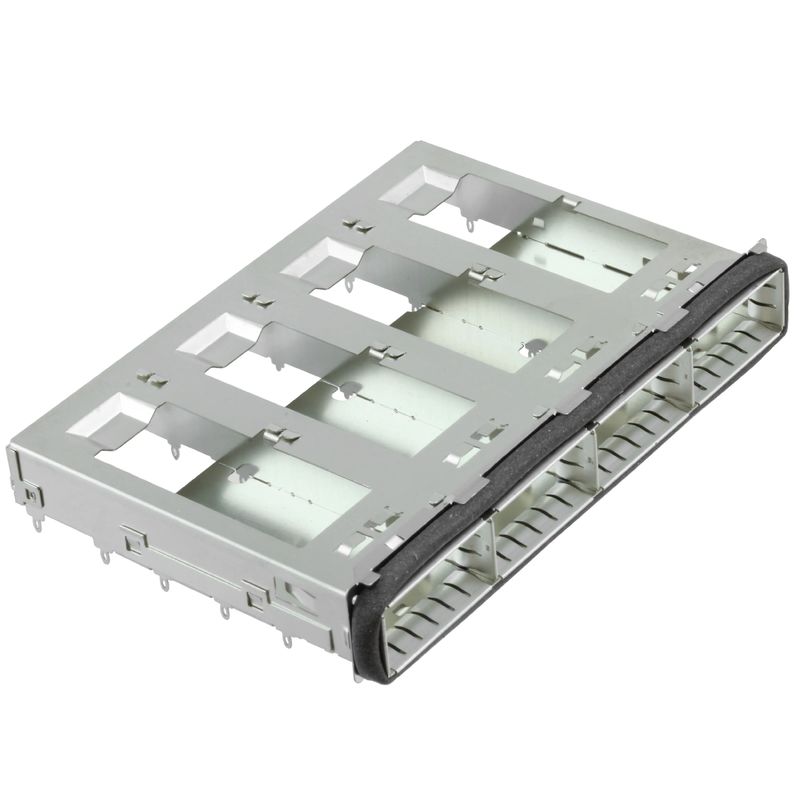

TE 2170288-1 QSFP Cage 1x4 Port:

TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket 0

TE 2170288-1 QSFP Cage Drawing:





TE 2170288-1 QSFP Cage 1x4 Port Press Fit Elastomeric Gasket 1









TE 2170288-1 Description:

.2170288-1 TE QSFP Cage Ganged (1 x 4) Connector
.2170288-1 1x4 QSFP Cage
.2170288-1 QSFP Cage Press-Fit
.2170288-1 QSFP Cage 1x4



TE 2170288-1 Similar Part Number :





2007473-1 2007464-2 2198721-1
1888631-1 2227104-1 2300281-1
4-2338495-1 1888631-3 2170746-1
2170288-1 2007135-1 2198722-1
2170030-1 2173238-1 2198720-1
