Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: LPJG16314A4NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Application: |
PCB |
Type: |
RJ45 Used In PCB |
Gender: |
Female |
Hi-pot: |
1500V DC |
Phase: |
Single |
Coil Structure: |
Toroidal |
Application: |
PCB |
Type: |
RJ45 Used In PCB |
Gender: |
Female |
Hi-pot: |
1500V DC |
Phase: |
Single |
Coil Structure: |
Toroidal |
|
|

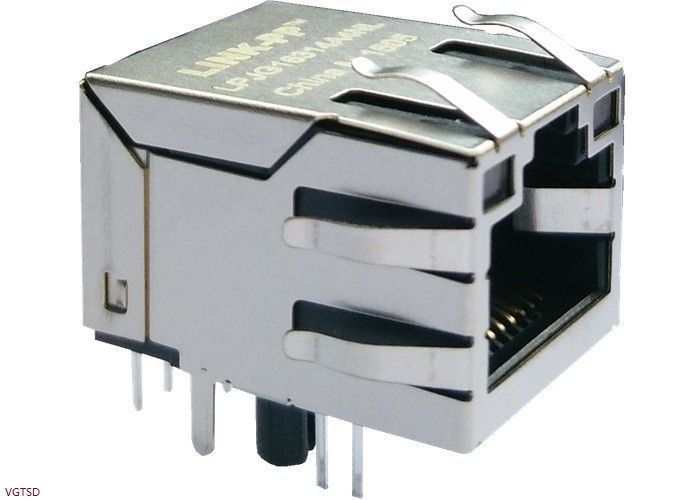

1) 100/1000 Base-T LPJG16314A4NL Single Port RJ45 Connector with Integrated Magnetics |
|
2) THT Mounting Type |
|
|
3) 350uH Min OCL @100KHz,0.1Vrms,8mADC BIAS |
|
|
4) Complies with IEEE 802.3 specification |
|
|
5) Operation temperature range 0°C~70°C |
|
|
6) Impedance: 100 ohms |
|
|
Application |
×DSL Modems |
|
Embedded PC |
|
|
LAN Applications |
|
|
Hub, Router, Switches |
|
|
AVR, DVR |
|
|
Electrical Characteristics |
|
|
Shielded |
YES |
|
Termination Features |
|
|
EMI Finger |
WITH |
|
Termination Method |
Solder |
|
Body Features |
|
|
LED |
With |
|
Latch Orientation |
Tape UP |
|
PCB Tail Length |
3.5±0.5mm |
|
Height Above Board |
Optional |
|
Contact Features |
|
|
Preloaded |
YES |
|
Contact Termination Type |
Through Hole |
|
Industry Standards |
|
|
Lead-Free Solder Process |
Wave solder capable to 260°C |
|
RoHS Compliance |
RoHS-Compliant |
|
Conditions for Usage |
|
|
Applies To |
Printed Circuit Board |
|
Environmental Conditions |
Office / Premises |
|
Operating Temperature(°c) |
0°C~70°C |
|
Other Features |
|
|
Status Indicator |
LED |
|
Left LED Color |
GREEN&YELLOW |
|
Right LED Color |
GREEN&YELLOW |
|
Singal Lead Quantity |
8 |
|
Datasheets |
1. Impedance: 100 ohms
2. OCL: 350uH Min @100KHz,0.1Vrms,8mADC BIAS
3. Turns Ratio: 1:1
4. Insertion Loss: 0.5-100MHz: -1.1dB Max
5. Return Loss (dB Min):
0.5-40MHz: -18
40.1-100MHz: -12-20L0G (f/50)
6. Crosstalk (dB Min):
0.5-40MHz: -35
40.1-100MHz: -33-20L0G (f/50)
7. Common Mode Rejection Ratio: 0.5-100MHz: -30dB Min
8. Isolation Voltage: 1500Vrms Min
1. Designed to support application, such as SOHO(ADSLmodems), LAN-on-Motherboard(LOM), hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bronze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm f
Shield: SUS 201-1/2H Thickness=0.2mm
Contact Plating: Gold 6 micro-inches min. In contact area.
4. Wave solder tip temperature: 255℃ Max,5 Sec Max.
