Home > products > SFP Cage Connector > TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe

TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

2198325-2

,

TE 2198325-2

,

zSFP+ 2x2 Cage

Original:
2198325-2
Connector Type:
ZSFP+
Part Status:
Active
Connector Style:
Receptacle With Cage, Ganged (2x2)
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
Original:
2198325-2
Connector Type:
ZSFP+
Part Status:
Active
Connector Style:
Receptacle With Cage, Ganged (2x2)
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe

TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe

2198325-2,zSFP+, Cage Assembly with Integrated Connector, Data Rate (Max) 32 Gb/s, Elastomeric Gasket, SFP+ Thermally Enhanced, Included Lightpipe

Part Number 2198325-2
Manufacturer LINK-PP
Part Status Active
Connector Type zSFP+
Connector Style Receptacle with Cage, Ganged (2x2)
Number of Ports 2X2 port
Number of Positions  80 (20 x 4)
Included Lightpipe Yes
PCB Mounting Style Through Hole - Press-Fit
Data Rate (Max) (Gb/s) 32
Features EMI Shielded
Operating Temperature Range -55 – 105 °C
PCB Thickness (Recommended) 1.8 mm [ .07 in ]
Tail Length 1.5 mm [ .059 in ]
Cage Material Nickel Silver Alloy
EMI Containment Feature Type Elastomeric Gasket
Circuit Application Signal




You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

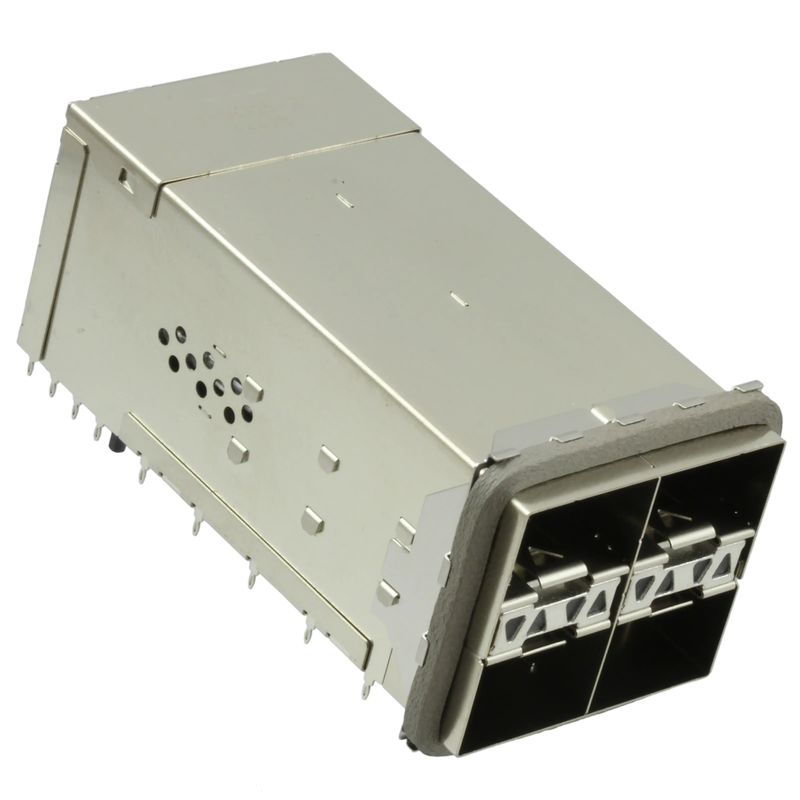

TE 2198325-2 zSFP+ 2x2 Cage:
TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe 0



2198325-2 zSFP+ 2x2 Cage With Integrated Connector Dimension:

TE 2198325-2 zSFP+ 2x2 Cage With Integrated Connector 32 Gb/s Included Lightpipe 1









2198325-2 Similar Part Number :



2007625-1 2170790-3 4-2170808-2
1-2007492-8 2198325-2 2198339-2
1-2007562-5 2170745-3 2143330-1
2170745-1 2227670-2 2308171-8
2227671-3 2149730-4 2227249-3







ZSFP+ PLUGGABLE I/O INTERCONNECT:

The zSFP+ interconnect is currently one of the fastest single-channel I/O connectors on the market today, transferring data at 28
Gbps NRZ and 56 Gbps PAM-4. Through a design that is backward-compatible to SFP/SFP+ products, the interconnect is
hotswappable with existing SFP+ connectors for fast system upgrades of 28-56 Gbps. Alternatively, users can design-in the zSFP+
connector for 10-16 Gbps data rates, establishing a progressive path to higher speeds-an upgradeability that can result in longterm
cost savings as this would eliminate the need to fully redesign for higher performance.

The zSFP+ interconnect is compliant to SFF-8402 and has been adopted for Fibre Channel 32G (28.05 Gbps line rate). The entire
product family is offered as a dual source option with Molex. LLC.
