Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Payment & Shipping Terms
Minimum Order Quantity: 10/100/25K
Price: $0.11-$35
Packaging Details: 20/Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 350K/Month
Original: |
2170747-3 |
Connector Type: |
ZQSFP+ |
Part Status: |
Active |
Connector Style: |
Cage, Ganged (1 X 4) With Heat Sink |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
Original: |
2170747-3 |
Connector Type: |
ZQSFP+ |
Part Status: |
Active |
Connector Style: |
Cage, Ganged (1 X 4) With Heat Sink |
File: |
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters |
Lifecycle: |
More Than 20Years |
| Part Number | 2170747-3 |
|---|---|
| Manufacturer | LINK-PP |
| Part Status | Active |
| Connector Type | ZQSFP+ |
| Connector Style | Cage, Ganged (1 x 4) with Heat Sink |
| Number of Ports | 1X4 port |
| Heat Sink Height | 13.5 mm [ .531 in ] |
| Included Lightpipe | Yes |
| PCB Mounting Style | Through Hole - Press-Fit |
| Data Rate (Max) (Gb/s) | 28 |
| Features | EMI Shielded |
| Operating Temperature Range | -40 – 85 °C |
| PCB Thickness (Recommended) | 1.57 mm [ .062 in ] |
| Tail Length | 2.05 mm [ .081 in ] |
| Cage Material | Nickel Silver |
| EMI Containment Feature Type | Internal/External EMI Springs |
| Circuit Application | Signal |
| You may be interesting in below considerate supports: | ||||
| Datasheet | Request by email to | contact us | ||
| Samples | Free | For Free samples delivery, pls advise below infomation For Shipping | ||
| Company Name | ||||
| Delivery Address | ||||
| Telephone Number | ||||
| Contact Person | ||||
| UPS/DHL/Fedex/TNT A.C | (If available) | |||
| Trial Production | U/P(USD) | $0.09-$1.85 | We can ship out parts directly to your warehouse/door to door | |
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Mass Production | U/P(USD) | Stock | ||
| L/T(Weeks) | Stock | |||
| Shipping Term | DAP/CIF/FCA/FOB | |||
| Lifecycel | More than 20 years | You can use our parts for long term consideration | ||
| Reject Ratio | Zero Defective (100% Tested) | |||
| Special Services | Accept customized service | Accept revised designing | ||
| Now you can contact us instantly |
||||

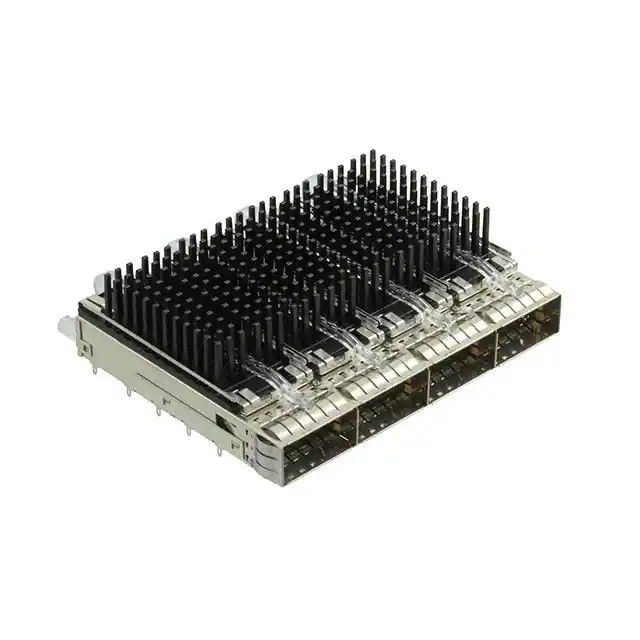

TE 2170747-3 ZQSFP+ 1x4 Cage :
2170747-3 ZQSFP+ 1x4 Cage With Heat Sink Dimension:
2170747-3 Similar Part Number :
| 2227671-1 | 4-2170808-5 | 4-2170747-2 |
| 2198318-2 | 2170747-3 | 2007637-8 |
| 2007492-8 | 2085945-3 | 2170707-4 |
| 2149730-1 | 2170806-4 | 2308171-4 |
| 2289129-2 | 1-2007492-7 | 1-2007492-6 |
Is zQSFP+ the same as QSFP28?
QSFP28 can do 4x25G breakout connection, 2x50G breakout, or 1x100G depending on the transceiver used.
While QSFP+ supports the data rate of 40G, 4 channels for transmitting and 4 channels for receiving, each lane
carrying 10G. QSFP+ can break out into 4x10G or 1x40G connection.
