Home > products > SFP Cage Connector > TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s

TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: ISO 9001,ISO 14001,UL,SGS,REACH168

Payment & Shipping Terms

Minimum Order Quantity: 10/100/25K

Price: $0.11-$35

Packaging Details: 20/Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 350K/Month

Get Best Price
Highlight:

2170287-1

,

TE 2170287-1

,

QSFP+ 1x4 Cage

Original:
2170287-1
Connector Type:
QSFP+
Part Status:
Active
Connector Style:
Cage, Ganged (1 X 4) With Heat Sink
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
Original:
2170287-1
Connector Type:
QSFP+
Part Status:
Active
Connector Style:
Cage, Ganged (1 X 4) With Heat Sink
File:
PDF/3D/ISG/Stp/Step/Datasheet/Touchstone Format/S-parameters
Lifecycle:
More Than 20Years
TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s

TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s

2170287-1,QSFP+ , Cage Assembly, 1 x 4, Elastomeric Gasket, Standard, Data Rate (Max) 14 Gb/s, 4 Port

Part Number 2170287-1
Manufacturer LINK-PP
Part Status Active
Connector Type QSFP+
Connector Style Cage, Ganged (1 x 4) with Heat Sink
Number of Ports 1X4 port
Number of Rear EONs per Port Column  2
Heat Sink Height  4.2 mm [ .165 in ]
Included Lightpipe No
PCB Mounting Style Through Hole - Press-Fit
Data Rate (Max) (Gb/s) 28
Features EMI Shielded
Operating Temperature Range -55 – 105 °C
PCB Thickness (Recommended) 1.45 mm [ .057 in ]
Tail Length 2.2 mm [ .086 in ]
Cage Material Nickel Silver
EMI Containment Feature Type Elastomeric Gasket
Circuit Application Signal




You may be interesting in below considerate supports:
Datasheet Request by email to contact us
Samples Free For Free samples delivery, pls advise below infomation For Shipping
Company Name
Delivery Address
Telephone Number
Contact Person
UPS/DHL/Fedex/TNT A.C (If available)
Trial Production U/P(USD) $0.09-$1.85 We can ship out parts directly to your warehouse/door to door
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Mass Production U/P(USD) Stock
L/T(Weeks) Stock
Shipping Term DAP/CIF/FCA/FOB
Lifecycel More than 20 years You can use our parts for long term consideration
Reject Ratio Zero Defective (100% Tested)
Special Services Accept customized service Accept revised designing
Now you can contact us instantly

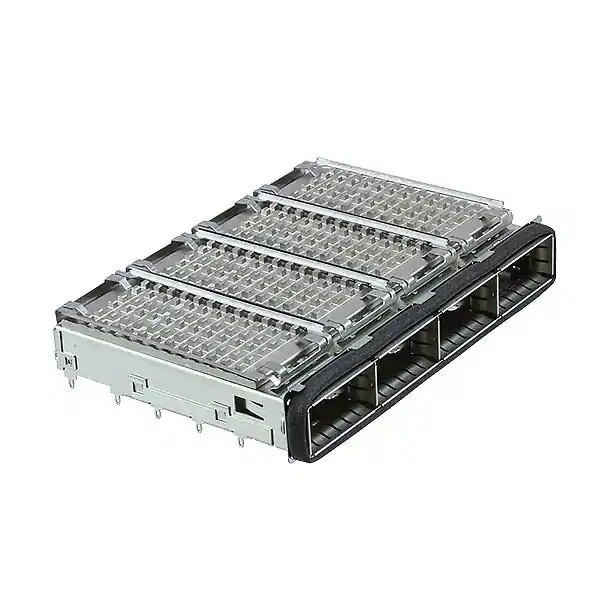

TE 2170287-1 QSFP+ 1x4 Cage:
TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s 0



2170287-1 QSFP+ 1x4 Cage With Heat Sink Dimension:



TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s 1

TE 2170287-1 QSFP+ 1x4 Cage With Heat Sink Elastomeric Gasket 14 Gb/s 2









2170287-1 Similar Part Number :



2214565-1 2170287-1 1-2198318-7
2007538-5 2085945-4 2214574-3
2007562-5 1-2149490-5 2007626-2
2-2170747-5 2170747-6 2-2170747-2
2308171-2 2308171-3 2180324-6





Can I use RJ45 in SFP?

How to connect a RJ45 to a SFP+ port? Connecting SFP+ to RJ45 directly is not possible only
with CAT cable. A special 10G Copper RJ-45 Transceiver (10G-SFP-T) is required to connect
SFP+ port to RJ45. This transceiver is inserted in SFP+ port (cage) – used as an adapter.
