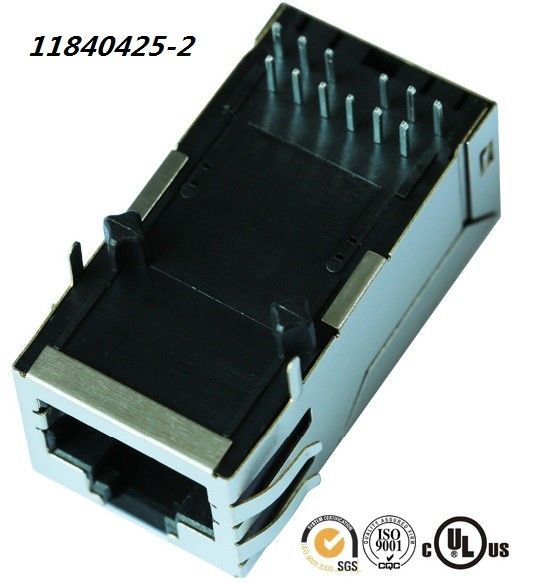

1x1 Mag POE RJ45 11840425-2 4VG45 Gigabit ET Circuit Tab Down

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 11840425-2

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: Optional

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

poe rj45 pinout

,

rj45 power over ethernet

Hi-pot:
1500V
Application:
PCB
LED Color:
G/Y;G/G/;Y/Y
Cross PN:
LPJK2064CNL
Type:
RJ45 PCB Jack
Gender:
Female
Hi-pot:
1500V
Application:
PCB
LED Color:
G/Y;G/G/;Y/Y
Cross PN:
LPJK2064CNL
Type:
RJ45 PCB Jack
Gender:
Female
1x1 Mag POE RJ45 11840425-2 4VG45 Gigabit ET Circuit Tab Down
1x1 Mag POE RJ45 11840425-2 4VG45 Gigabit ET Circuit Tab Down





Specifications



  • 11840425-2
  • Meeting with  IEEE 802.3 specification.
  • High performance for maximum EMI suppression.
  • Telecom interface suitable for 1000 Base-TX applications.
  • POE RJ45 Connector
  • Designed for network interface card application
  • All materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH
  • Cross PN:LPJK2064CNL

Features

  • Power Over Ethernet (PoE) Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs

  • Single port, Multi-port and Stackable configurations (Thru-hole)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Quick Details



Single Port Conector RJ45 Cat5 Jack with 1000 Base-T Integrated Magnetics & PoE,Without LED,Tab Up,RoHS
LINK-PP Part Number LPJK2064CNL
Cross Part Number

11840425-2

Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 8
Diodes NO DIODES
LED Option WITHOUT LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.531
Package Height (mm) 13.50
Package Length (Inches) 1.30
Package Length (mm) 33.02
Package Width (Inches) 0.654
Package Width (mm) 16.60
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 1000 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Datasheets E-mail Inquiry to Summer@link-PP.com






BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.



                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
