Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: XMH-9771-8812-S3L2T2-EU
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: Optional
Delivery Time: 2-3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Application: |
PCB |
PCB Mount Angle: |
SIDE ENTRY |
Gender: |
Female |
Hi-pot: |
1500V |
LED Color: |
Yellow + Green |
Speed: |
Gigabit 1000BASE-T |
Application: |
PCB |
PCB Mount Angle: |
SIDE ENTRY |
Gender: |
Female |
Hi-pot: |
1500V |
LED Color: |
Yellow + Green |
Speed: |
Gigabit 1000BASE-T |
Quick Details
Specifications
| XMH-9771-8812-S3L2T2-EU Specifications | |
| Type PCB Mount | Thru-Hole (THT) |
| Number of Ports | Single Port |
| Shield Type | Shielded |
| Connector Type | RJ45 |
| PoE | Power Over Ethernet Integrated |
| Magnetics | Magnetic Integrated |
| Magnetics Speed | Magnetics 10/100Mbps and 1000Mbps |
| Packaging | Tray Options |
| Tab Location | Tab Up |
| LED Color | Optional |
| Number of Positions | 8 and 10 Positions or Others |
| Number of Contacts | 8 and 10 Contacts or Others |
| RoHS Compliant | Yes |
| Solder Temperature | 230 TO 240 degrees Celsius 5-10 SECONDS |
| Solder High-Temp Option | 260 °C 5-10 SECONDS |
| High Temperature Option | -40 to +85 Degrees F |
| Operating Temperature | -0 to 70 Degrees C |
XMH-9771-8812-S3L2T2-EU Datasheet

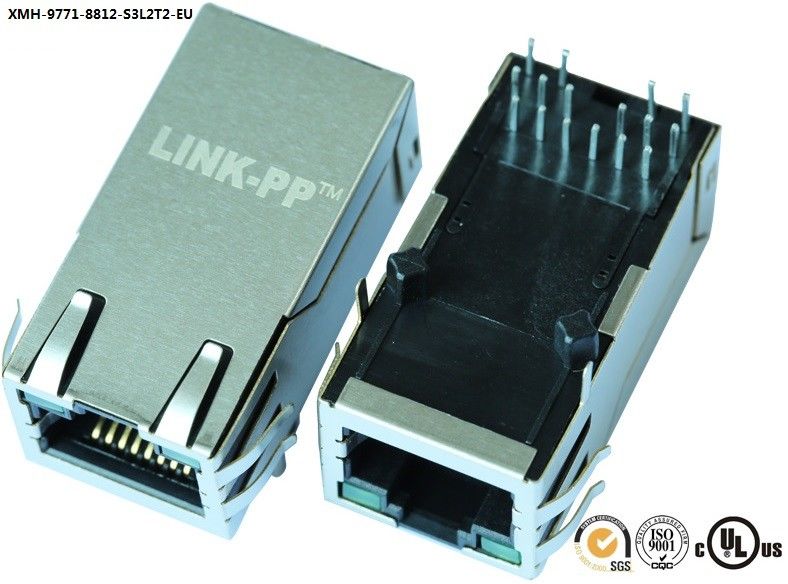

XMH-9771-8812-S3L2T2-EU
LINK-PP RJ45 Designed for BeagleBone Black of Texas Instruments
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.
LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
|
