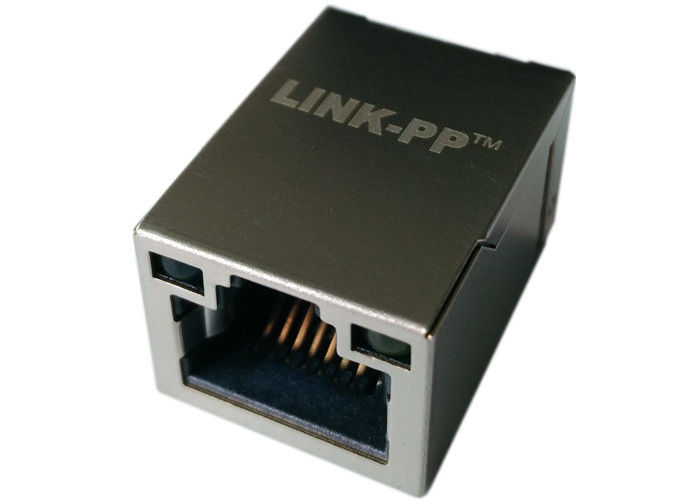

LPJ19201BGNL SMT RJ45 Jack Cross 7498011241 Surface Mouting Connector

Name: LPJ19201BGNL SMT RJ45 Jack Cross 7498011241 Surface Mouting Connector
Brand: LINK-PP
SKU: 7498011241
Rating: 4.6 (199 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 7498011241

Payment & Shipping Terms

Minimum Order Quantity: 600 PCS

Price: Supportive&Competitive

Packaging Details: 150PCS/Reel,6Reels/Carton,900PCS/Carton=35.5*35.5*35cm,Weight10KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                rj45 smt connector, ultra low profile jack


Specification:	7498011241	Cross PN:	LPJ19201BGNL
Ethernet:	10/100mpbs	Mouting:	SMD
Indicator:	LED	Samples:	Free Available

Specification:	7498011241
Cross PN:	LPJ19201BGNL
Ethernet:	10/100mpbs
Mouting:	SMD
Indicator:	LED
Samples:	Free Available

LPJ19201BGNL SMT RJ45 Jack Cross 7498011241 Surface Mouting Connector

LINK-PP # LPJ19201BGNL
SMT RJ45 Connector
Meets Network Adapter
RosH ,ISO9001,SGS,UL,CE,REACH
Cross 7498011241

Electrical Specification @25℃

1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss(dB Max):
1-80MHz:-1.0 100MHz:-1.2
4.Return Loss(dB Min @100Ω):
1-60MHz:-14 60-100MHz:-10
5.Crosstalk: 1-80MHz:-35dB Min
6.IR Reflow peak temperature: 260 degc.
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃～70℃.
