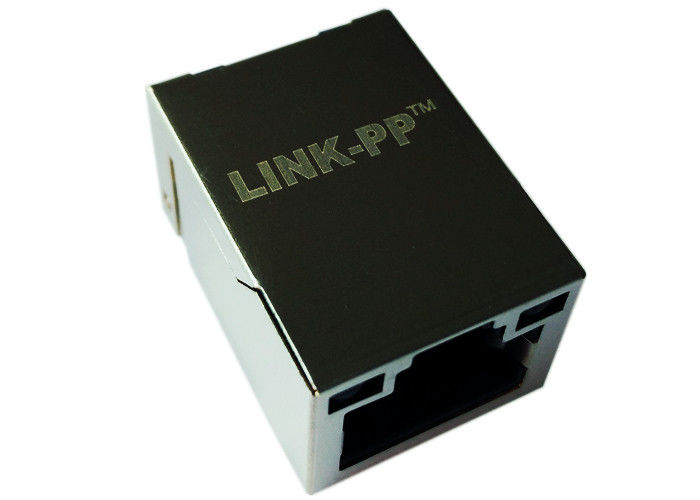

E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL
E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL

E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: GE5TAB-XX0TXX

Payment & Shipping Terms

Minimum Order Quantity: 600 PCS

Price: Supportive&Discount

Packaging Details: 150PCS/Reel,6Reels/Carton,900PCS/Carton=35.5*35.5*35cm,Weight10KG

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description
Highlight:

surface mount rj45 connector

,

ultra low profile jack

Part Number:
LPJ19201BGNL
Cross:
E5TAB-1COT02-L / E5TAB-1COT12-L
Ethernet:
10/100 Fast
Samples:
Available& Free
Part Number:
LPJ19201BGNL
Cross:
E5TAB-1COT02-L / E5TAB-1COT12-L
Ethernet:
10/100 Fast
Samples:
Available& Free
E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL

E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL



  • LINK-PP Rj45 LPJ19201BGNL
  • Cross Specification GE5T3013-LC / GE5TAB-XX0TXX
  • E5TAB-1C0T02-L / E5TAB-1C0T12-L
  • SMT RJ45 Jack
  • Rj45 10/100 Base-T Transformer Jack With Impedance Resistor/High Voltage Capacitor
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100Base-TX for Communication Controllers
  • Designed for network interface card application and Network Adapter
  • Original materials are RoHS and UL94-V0 compliant
  • ISO9001,SGS,UL,CE,REACH

1.Turns Ratio(±2%):
TX=1CT:1CT

RX=1CT:1CT
2.OCL: 350uH Min
@100KHz,100mV,8mA bias current
3.Insertion Loss(dB Max):
1-80MHz:-1.0 100MHz:-1.2
4.Return Loss(dB Min @100Ω):
1-60MHz:-14 60-100MHz:-10
5.Crosstalk: 1-80MHz:-35dB Min
6.IR Reflow peak temperature: 260 degc.
7.Isolation Voltage: 1500Vrms Min
8.Operating Temperature: 0℃～70℃.

 E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL 0
E5TAB-1C0T02-L / E5TAB-1C0T12-L PCB Transformer SMT Jack Rj45 LPJ19201BGNL 1



Tags:

Pin In Paste RJ45,

RJ45 Through Hole Connector,

Thru Hole Reflow RJ45
