Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LPJ27434AFNL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Spec: |
SI-30163-F Obsoleted |
Replaced By: |

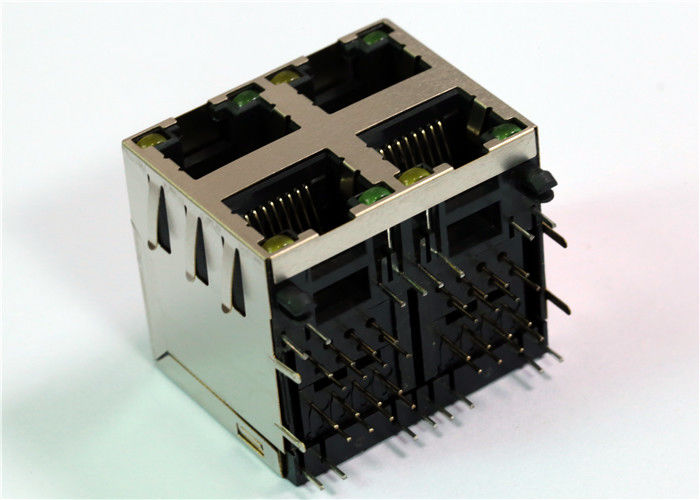

LPJ27434AFNL |
Ethernet: |
2x2 10/100Mbps |
Family: |
Rj45 W/Transformer |
Files: |
3D STep PDF Datasheet |
Spec: |
SI-30163-F Obsoleted |
Replaced By: |
LPJ27434AFNL |
Ethernet: |
2x2 10/100Mbps |
Family: |
Rj45 W/Transformer |
Files: |
3D STep PDF Datasheet |
Characteristics | LPJ27434AFNL Replaced => SI-30163-F |
2)SMD,THT and THT with USB | |
3)350μH min,OCL with 8mA bias | |
4)Complies with IEEE 802.3 | |
5)Extended temperature range 0°c~70°c ( or -40°c~+85°c ) | |
Operation/Application | ×DSL Modems |
EMbedded PC | |
LAN Applications | |
Hub,Router,Switches | |
AVR,DVR | |
Electrical Characteristics | |
Shielded | with/without |
Termination Features | |
EMI Finger | with/without |
Termination Method | Solder |
Body Features | |
LED | with/without |
EMI Fingers - Top and Sides | with/without |
Latch Orientation | Tape UP/Down |
PCB Tail Length | 3.5±0.5mm |
Height Above Board | Optional |
Contact Features | |
Preloaded | YES |
Contact Termination Type | Through Hole |
Connector Style | Jack |
Cores Number | 8 |
Industry Standards | |
Lead Free Solder Process | Wave solder capable to 265°c |
RoHS/elv Compliance History | Always was RoHS Compliant |
Conditions for Usage | |
Applies To | Printed Circuit Board |
Environmental Conditions | Office / Premises |
Operating Temperature(°c) | 0°c~70°c / -40°c~+85°c |
Other Features | |
Magnetic Circuit | 3D15 |
Status Indicator | LED |
Left LED Color | Optional |
Right LED Color | Optional |
Decoupling capacitor | with/without |
Rear PCB Ground Tab | with/without |
Singal Lead Quantity | 8 |
Others Name | LPJ27434AFNL |
