Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: XRJH-22D-0-H62-070
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month

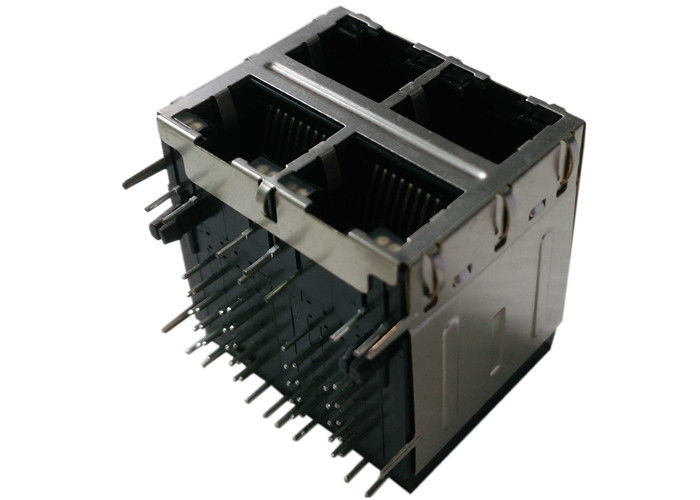

XRJH-22D-0-H62-070 Stacked RJ45 2x2 Combo 10/100/1000 Magnetics 8P 10C
2X2 Rj45 Female Jack Gigabit
Suitable for CAT 5 & 6 Fast Ethernet Cable or better UTP
High performance for maximum EMI suppression.
LAN interface suitable for 1000Base-TX for Communication Controllers
Designed for network interface card application and Network Adapter
Original materials are RoHS and UL94-V0 compliant
ISO9001,SGS,UL,CE,REACH
XRJH-22D-0-H62-070 Electrical Specification @25℃
1.Turns Ratio(±2%):
(P1-P3):(J1-J2)=1:1
(P4-P6):(J3-J6)=1:1
2.Inductance: 350uH Min
@0.1V,0.1MHz,8mA DC Bias
3.Insertion Loss:
0.1-100MHz:-1.2dB Max
4.Return Loss(dB Min):
1-30MHz:-18
30-80MHz:-12
5.Crosstalk(dB Typ):
1-100MHz:-40
6.Common to Mode Rejection:
30-100MHz:-35dB Min
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.
