Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: J20-0014NL
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Specification: |
J20-0014NL |
Equivalent: |
LPJ47212CNL |
I/O: |
8x10/100M |
Family: |

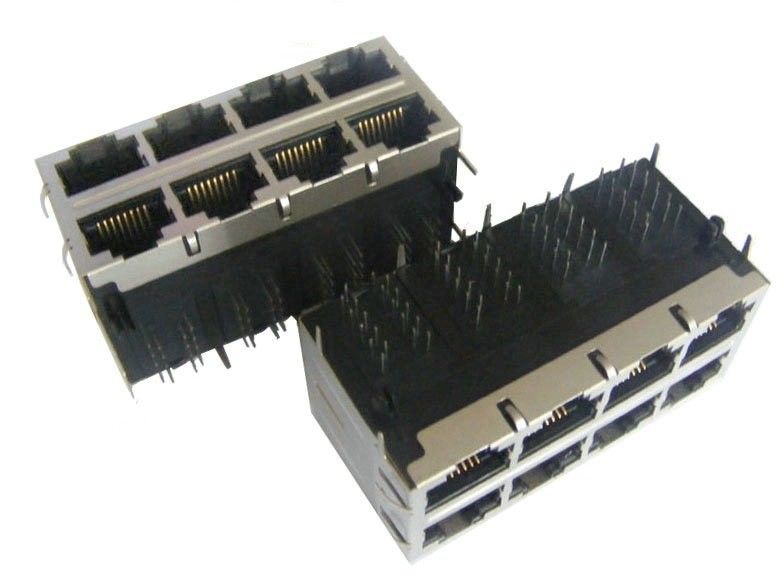

8 Port RJ45 Magjack Connector |
Cross Rf: |
LPJ47212CNL = J20-0014NL |
Specification: |
J20-0014NL |
Equivalent: |
LPJ47212CNL |
I/O: |
8x10/100M |
Family: |
8 Port RJ45 Magjack Connector |
Cross Rf: |
LPJ47212CNL = J20-0014NL |
| Categories | Modular Connectors - Jacks With Magnetics |
| Manufacturer | Pulse Electronics Network |
| Series | PULSEJACK™ J2 |
| Packaging | Bulk |
| Part Status | Active |
| Connector Type | RJ45 |
| Number of Ports | 8 |
| Number of Rows | 2 |
| Applications | 10/100 Base-TX, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Height Above Board | 1.005" (25.53mm) |
| LED Color | Green, Yellow - Green, Yellow |
| Number of Cores per Jack | 4 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Up and Down |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Operating Temperature | 0°C ~ 70°C |
| Contact Finish Thickness | 30µin (0.76µm) |
| Shield Material | Brass |
| Housing Material | Thermoplastic |
