Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3

China Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3 supplier

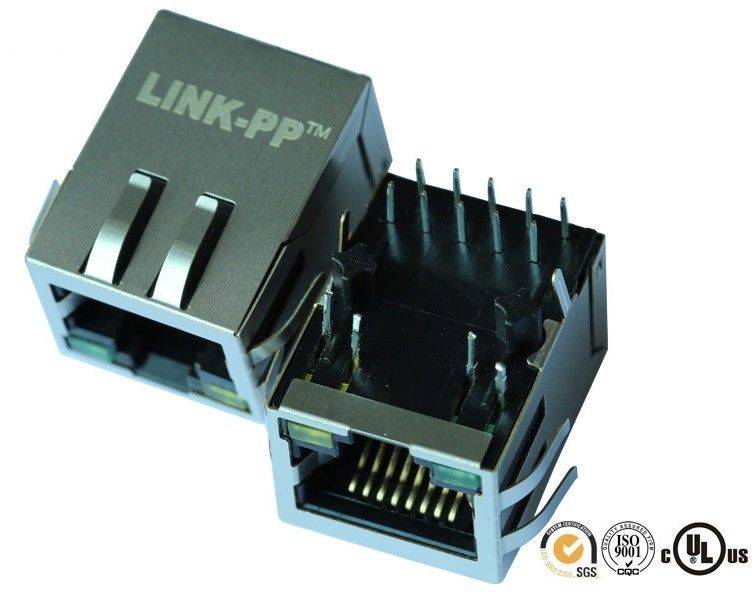

Large Image :  Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 7499011122 MIC25011-5110T-LF3

Payment & Shipping Terms:

Minimum Order Quantity: 500 PCS
Price: Supportive
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: 3-30 work days
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description

Industrial Network Switches Transformer  7499011122 , MIC25011-5110T-LF3



  •  7499011122
  • Target Applications – embedded computer, Rapid Deployment, Portable Applications
  • Meets IEEE 802.3 specification.
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100 Base-TX voip systems
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • ISO9001,SGS,UL,CE,REACH
Features
  • Certified on all major carrier networks,attractive for network interface cards(NICS)
  • Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs
  • Single port, Multi-port and Stackable configurations (Thru-hole/ SMT)
  • Reduces the number of components to be placed on the board
  • Frees up board space and offers signal protection
  • Noise reduction in the system
  • Improved reliability and optimal system performance
  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
  • Helps manufacturers reach their goals of cost reduction








Characteristics


7499011002 RJ45 With Integrated Magnetics Shielded To Industrial Network Switches
2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )
available
6)PoE/PoE+  (350mA~720mA)
Operation/Application
×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics
Shielded
with/without
Termination Features
EMI Finger
with/without
Termination Method
Solder
Body  Features
LED
with/without
EMI Fingers - Top and Sides
with/without
Latch Orientation
Tape UP/Down
PCB Tail Length
3.5±0.5mm
Height Above Board
Optional
Contact  Features
Preloaded
YES
Contact Termination Type
Through Hole
Connector Style
Jack
Cores Number
8
Industry Standards
Lead Free Solder Process
Wave solder capable to 265°c
RoHS/elv Compliance History
Always was RoHS Compliant
Conditions for Usage
Applies To
Printed Circuit Board
Environmental Conditions
Office / Premises
Operating Temperature(°c)
0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit
3D15
Status Indicator
LED
Left LED Color
Optional
Right LED Color
Optional
Decoupling capacitor
with/without
Rear PCB Ground Tab
with/without
Singal Lead Quantity
8
Datasheets
E-mail Inquiry to Summer@link-PP.com
Others Name
MIC25011-5110T-LF3, LPJ0026GDNL



BeagleBone Black


LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument
http://www.ti.com/tool/beaglebk#0
a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.

                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti

Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3



7499011002 RJ45 With Integrated Magnetics Shielded To Industrial Network Switches


Related PN

We Can Also Make These Part Number Below

0813-1X1T-23-F
LPJK0071CNL
0813-1X1T-57-F
LPJK0013CNL
08161X1T32-F
LPJK4036CNL
0816-1X1T-M1-F
LPJK6065CNL
0817-1A1T-11-F
JH1026A7R
0817-1A1T-11-F
LPJ1026AGNL
08211X1T36-F
LPJU3401AONL
0821-1X1T-36-F
LPJU3401AONL
0826-1AX1-47-F
LPJK0066BHNL
0826-1C4T-23-F1
LPJK0071A4NL
0826-1D1T-23-F
LPJK0071AGNL
0826-1G1T-23-F
LPJK4071AWNL
0826-1G1T-32-F
LPJK4036AWNL
0826-1G1T-43-F
LPJK0036AWNL
0826-1K1T-23-F
LPJK0071AINL
0826-1L1T-57-F
LPJK1014A8NL
0826-1X1T-1-F
LPJK2065AONL
0826-1X1T-23-F
LPJK0071AONL
0826-1X1T-43-F
LPJK0036A0NL


Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3



Order  Selection

7499011002 RJ45 With Integrated Magnetics Shielded To Industrial Network Switches
Type PCB Mount
Thru-Hole (THT) Or SMT
Number of Ports
1, 2, 4,6,8 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield
Available in Shield and Unshield
Connector Type
RJ45
PoE
Power Over Ethernet Integrated (With Or Without)
Magnetics
Magnetic Integrated
Magnetics Speed
Magnetics 10/100Mbps and 1000Mbps
Packaging
Tray Options
Tab Location
Tab Up and Tab Down Options
LED Color
Optional
Number of Positions
8 and 10 Positions or Others
Number of Contacts
8 and 10 Contacts or Others
RoHS Compliant
Yes
Solder Temperature
230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option
260 degr.C 5-10 SECONDS
High Temperature Option
-40 to +85 Degrees F
Operating Temperature
-0 to 70 Degrees C



7499011002 RJ45 With Integrated Magnetics Shielded To Industrial Network Switches

Industrial Network Switches Transformer 7499011122 , MIC25011-5110T-LF3
