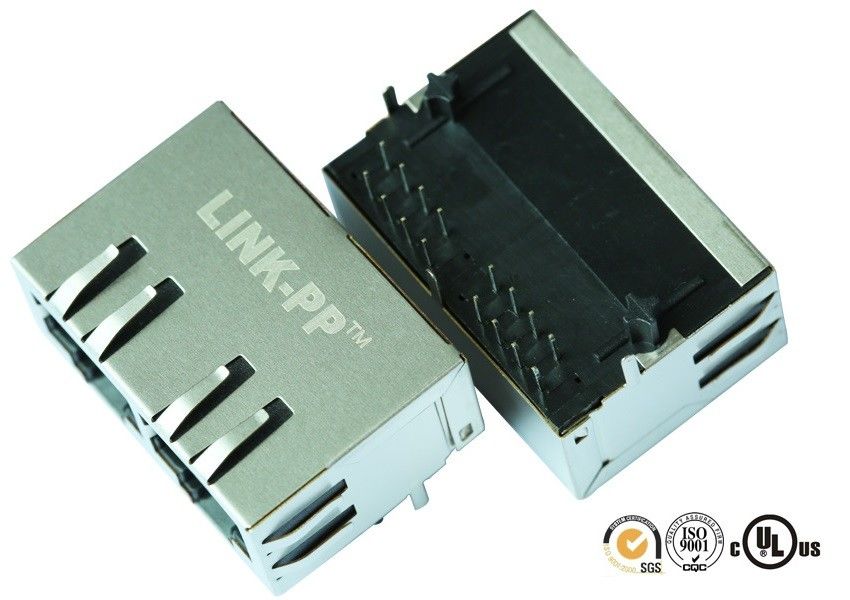

LAN Controllers RJ45 With Integrated Magnetics Through Hole 7499021220

LAN Controllers  RJ45 With Integrated Magnetics Through Hole 7499021220
LAN Controllers  RJ45 With Integrated Magnetics Through Hole 7499021220

Large Image :  LAN Controllers RJ45 With Integrated Magnetics Through Hole 7499021220

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499021220
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000
Price: 0.5~10 USD/PCS
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Detailed Product Description
Mfr Package Description: ROHS COMPLIANT Mounting Feature: THROUGH HOLE MOUNTED
Physical Dimension: L31.24XB21.59XH14.0 (mm)/L1.23XB0.85XH0.551 (inch) Application: LAN; 10/100 BASE-T; AUTOMDIX
Isolation Voltage: 1500 KV Transformer Type: DATACOM TRANSFORMER
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack



LAN Controllers  RJ45 With Integrated Magnetics Through Hole 7499021220








Quick Details



  •  7499021220
  • Industrial Ethernet Infrastructure Products
  • Meets IEEE 802.3 specification.
  • High performance for maximum EMI suppression.
  • LAN interface suitable for 100 Base-TX voip systems
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • ISO9001,SGS,UL,CE,REACH

Features

  • Certified on all major carrier networks,attractive for network interface cards(NICS)

  • Magnetic Connectors with Tab-Up and Tab-Down with/without LED's and EMI tabs

  • Single port, Multi-port and Stackable configurations (Thru-hole/ SMT)

  • Reduces the number of components to be placed on the board

  • Frees up board space and offers signal protection

  • Noise reduction in the system

  • Improved reliability and optimal system performance

  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components

  • Helps manufacturers reach their goals of cost reduction




Specifications





Characteristics





LAN Controllers  RJ45 With Integrated Magnetics Through Hole 7499021220

2)SMT,THT and THT with USB
3)350μH min,OCL with 8mA bias
4)Complies with IEEE 802.3

5)Extended temperature range  0°c~70°c ( or  -40°c~+85°c )

available

6)PoE/PoE+  (350mA~720mA)
Operation/Application         ×DSL Modems
EMbedded PC
LAN Applications
Hub,Router,Switches
AVR,DVR
Electrical Characteristics
Shielded with/without
Termination Features
EMI Finger with/without
Termination Method

Solder

Body  Features
LED with/without
EMI Fingers - Top and Sides with/without
Latch Orientation Tape UP/Down
PCB Tail Length 3.5±0.5mm

Height Above Board

Optional

Contact  Features
Preloaded YES
Contact Termination Type Through Hole
Connector Style Jack

Cores Number

8
Industry Standards
Lead Free Solder Process Wave solder capable to 265°c
RoHS/elv Compliance History Always was RoHS Compliant
Conditions for Usage
Applies To Printed Circuit Board
Environmental Conditions Office / Premises
Operating Temperature(°c) 0°c~70°c / -40°c~+85°c
Other Features
Magnetic Circuit 3D15
Status Indicator LED
Left LED Color Optional
Right LED Color Optional
Decoupling capacitor with/without
Rear PCB Ground Tab with/without
Singal Lead Quantity 8

Datasheets

E-mail Inquiry to Summer@link-PP.com

Others Name LPJF26204AFNL






BeagleBone Black




LINK-PP RJ45  Designed for BeagleBone Black of Texas Instrument

http://www.ti.com/tool/beaglebk#0

a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists.



                       LINK-PP ------------ The Appointed Supplier And Supporter Of Embedded System for Ti
